PCM Stationary Pipe Cutting And Beveling Machine

PCM Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes. Pipe length setting system and pipe conveying system are optional. advantage with high speed, high precision, high quality of cutting, easy to control. it is the key equipment for all kinds of pipe prefabrication. suitable for cutting and processing pipe of oil, chemical, natural gas, nuclear power and other industry.

• 6models are available in pipe OD:34-930mm
• Cold cutting, don’t influence the pipe’s material
• Simple button-type controller, easy operation
• Electric clamping system,self-centering, precision solid
• Automatic feed and manual feed can be optioned.
• Built-in water cooling systems, increasing the life of machine and tools.
• Beveling shape: “U”,“V”,“J”, double “V”, compound bevels.
• Cutting and beveling，and can be used for cutting, beveling, double beveling.
• Machine up/down design, perfectly adapted to different diameter in the same pipe conveyor

*Above parameters just for reference only, not acceptance criteria

Power requirement：380V,50-60Hz,3P

Up/down travel:300mm

Feeding travel:150mm

pipe length limit:200mm

Tool post quantity.：2 or 4

Angle deviation：±0.5

Vertical deviation：±0.5mm @300mm pipe OD

Tool Feeding：mechanical automatic

Tool retract：Manual

*other beveling shape, angle and pipe material, please declare before order

Options of form type and insert type tools
Available for cutting all thickness and material of pipe and beveling at any required angle.

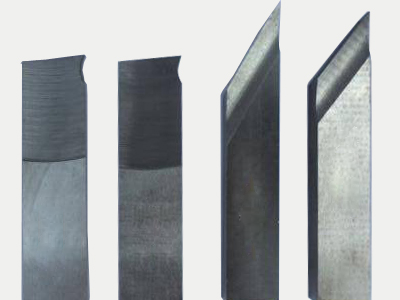

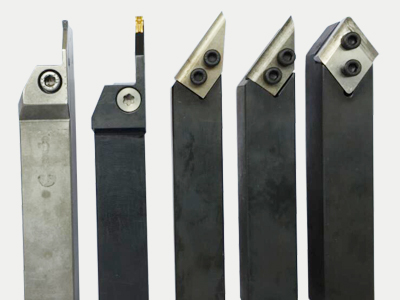

Form Type	Insert Type
Material：M42 Kinds：Cut off，beveling，Double beveling，Compound beveling Angle：0°，30°，37.5°，double 30°/37.5°，37.5°+10° Length:90mm,150mm,200mm	Material: Tool holder:40Cr ; Insert: CSS or Carbide kinds：Cut off，beveling，Double beveling，Compound beveling Angle：0°，30°，37.5°，double 30°/37.5°，37.5°+10°

According to the need to customize.

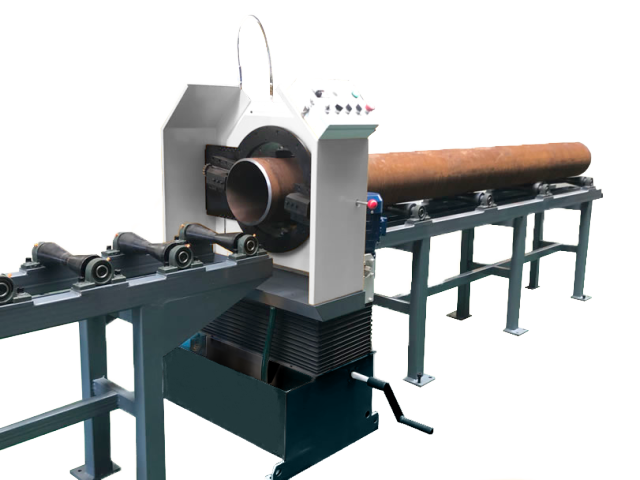

Optional pipe conveyor and automatic length setting systems, be formulated with highly efficient logistics system, and form pipe cutting and beveling prefabricated production line
