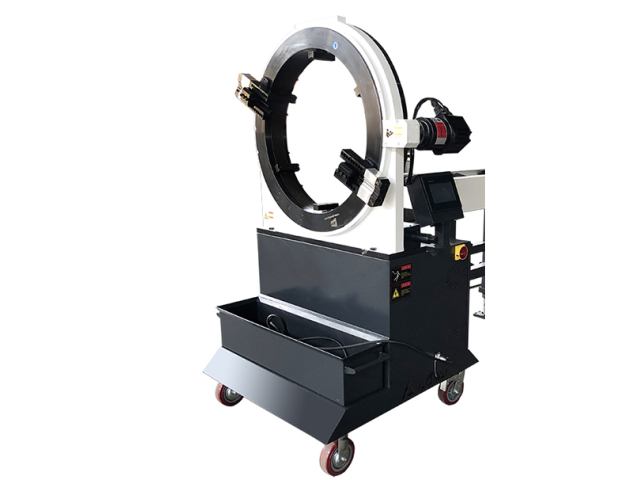

KSD machine is a practical pipe cutting and beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes.
|
Model |
Working range OD mm |
Wall thickness mm |
Rotation rpm |
Power kw |
|
KSD-120 |
Ф20-120 |
≤20 |
0-33 |
1.5 |
|
KSD-170 |
Ф35-170 |
≤30 |
0-23 |
1.5 |
|
KSD-220 |
Ф76-220 |
≤30 |
0-18 |
1.5 |
|
KSD-320 |
Ф168-320 |
≤30 |
0-14 |
1.5 |
|
KSD-420 |
Ф273-420 |
≤30 |
0-14 |
2.0 |
|
KSD-520 |
Ф377-520 |
≤30 |
0-13 |
2.0 |
|
KSD-620 |
Ф457-620 |
≤30 |
0-13 |
2.0 |
|
KSD-720 |
Ф559-720 |
≤30 |
0-13 |
2.0 |
Please declare Beveling shape, angle and pipe material in advance
Material: M42
kinds：Cut off，beveling，Double face,Compound
Angle：0°，30°，37.5°，
Double 30°/37.5°,37.5°+10°
The fundamental processing principle involves clamping the pipe stationary while a high-speed rotating tool head drives cutting tools to progressively feed inward according to preset parameters.
PCM Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes.
