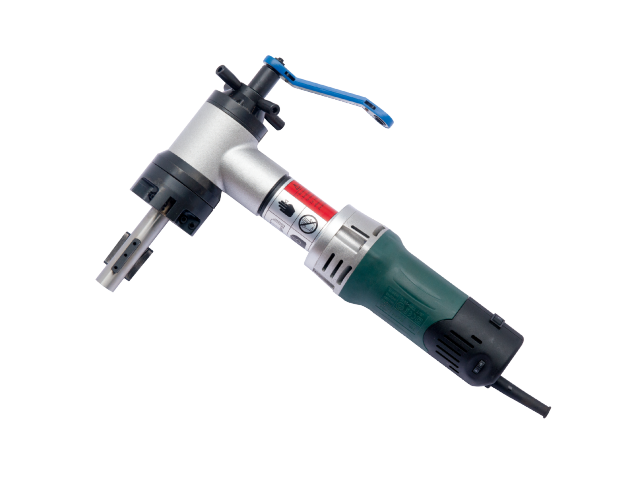

ID Mounted Pipe Beveling Machine

ID mounted pipe beveling machine is installed on the pipe inside. The pipe is fixed while the cutter rotates to perform beveling on the pipe end, as well as on pressure vessels and flange surfaces, facilitating pipeline welding and meeting construction requirements.

OVERVIEW

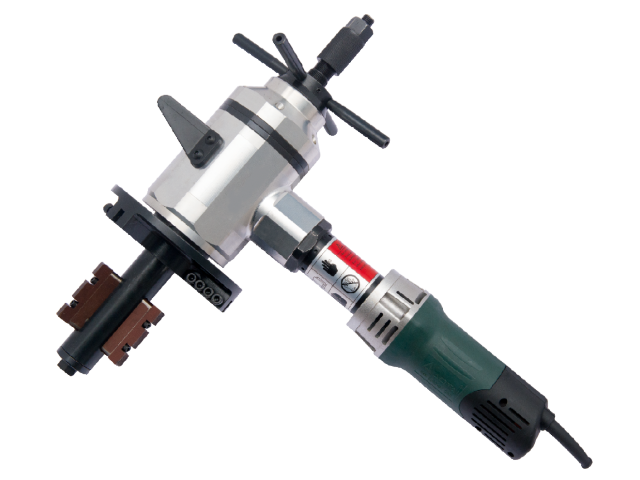

ID mounted pipe beveling machine is installed on the pipe inside. The pipe is fixed while the cutter rotates to perform beveling on the pipe end, as well as on pressure vessels and flange surfaces, facilitating pipeline welding and meeting construction requirements. This machine is easy to install and operate, suitable for beveling various grades of carbon steel, stainless steel, alloy steel, and other metal materials, as well as hard engineering materials. It finds wide applications in industries such as petroleum, chemical, natural gas, food processing, boiler manufacturing, pharmaceuticals, nuclear power plants,and venue construction for pipeline installation projects and onsite pipeline repair operations.

FEATURES

  • Cold cutting, without influence the material of the pipe
  • ID mounted, pipe fixed,cutter rotation
  • Bevel shape: U, Single-V, double-V,J beveling
  • Processing for repairing inner wall and deep hole.
  • Working range:12.5-330mm

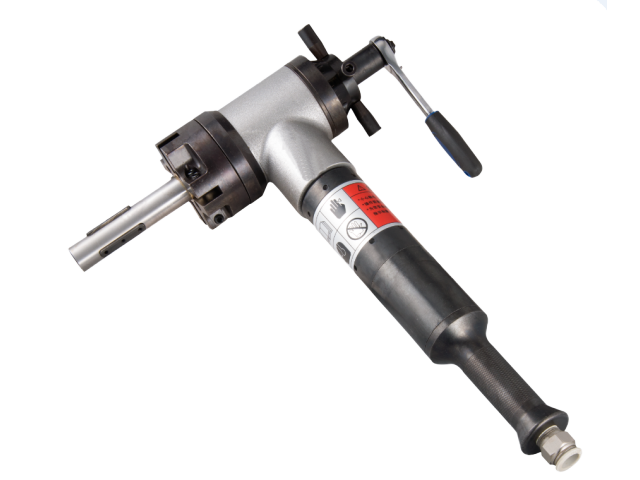

  • Driven motor: Pneumatic and Electric

SPECIFICATION:

Model

Working range

ID mm

Wall thickness

mm

Power

kw

Rotation

rpm

Electric

 Pneumatic

ISY-80T

TCM-80T

Ф28-76

≤15

1.43

53

ISY-90T

TCM-90T

Ф36-90

≤15

1.43

50

ISY-28TN

TCM-28TN

Ф12.5-28

≤3

1.43

70

ISY-80TN

TCM-80TN

Ф26-79

≤15

1.43

70

SDC-120TN

TCM-120TN

Ф45-105

≤20

1.43

34

SDC-150TN

TCM-150TN

Ф60-170

≤20

1.43

34

SDC-350TN

TCM-350TN

Ф150-330

≤20

1.43

14

ISY-150

TCM-150

Ф60-170

≤15

1.43

30

ISY-250

TCM-250

Ф80-240

≤15

1.43

16

ISY-351

TCM-351

Ф150-330

≤15

1.43

10

ISY-457

TCM-457

Ф250-430

≤15

1.43

9

ISY-630

TCM-630

Ф300-600

≤15

1.43

8

ISY-850

TCM-850

Ф600-820

≤15

2.0

7

ISY-250-II

TCM-250-II

Ф80-240

≤75

1.43

16

ISY-351-II

TCM-351-II

Ф150-330

≤75

1.43

10

ISY-630-II

TCM-630-II

Ф300-600

≤75

2.0

8

ISY-850-II

TCM-850-II

Ф600-820

≤75

2.0

7

SDD-1050

HDD-1050

Ф800-1050

≤120

3.0

9

SDD-1300

HDD-1300

Ф1050-1300

≤120

3.0

7

SDD-1500

HDD-1500

Ф1300-1500

≤120

3.0

6

SDD-1800

HDD-1800

Ф1500-1800

≤120

5.5

5

SDD-2300

HDD-2300

Ф1800-2050

≤120

5.5

5

POWER SUPPLIES:

Electric: 1.43-2.2kw @220-230V 50-60Hz,1P

Pneumatic: 1500-2000L/min@0.63-0.8MPa

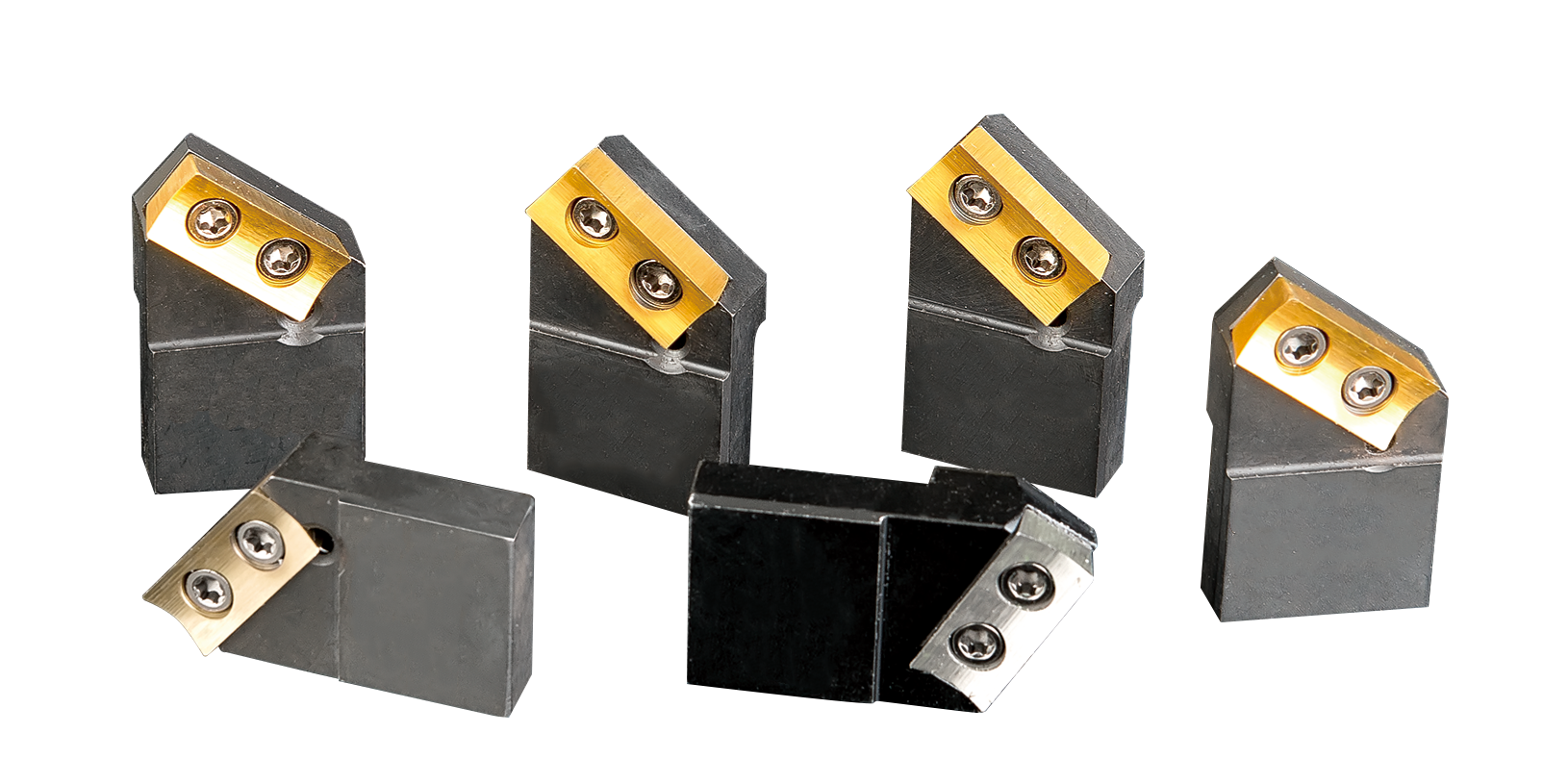

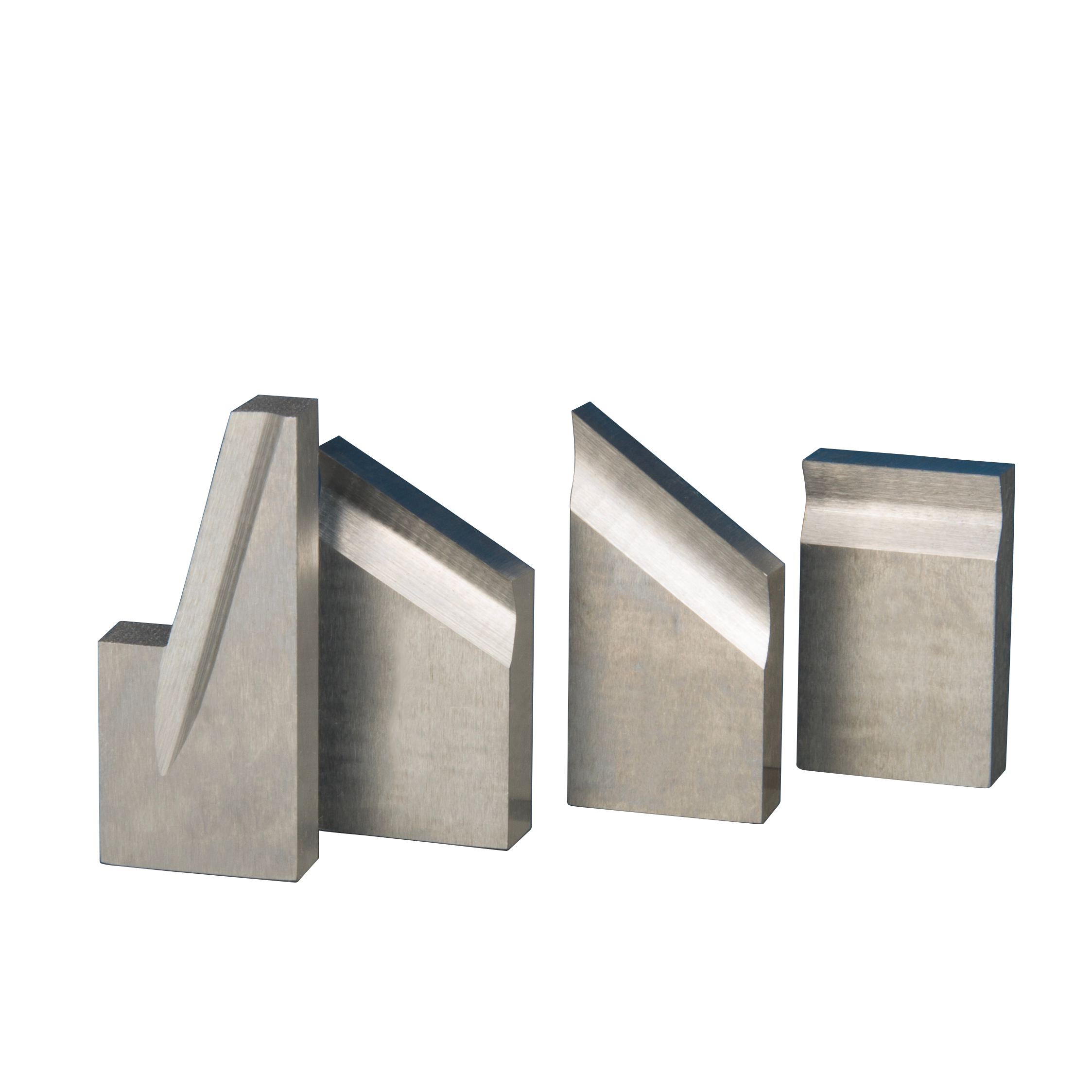

1.TOOLING

1. Form Type

Material:M42,W6

size:20*40*8 mm,

angle:0°,30°,37°,-15°

2. Insert Type

Tool holder:40Cr

Insert:Carbide

size:20*40*8 mm

Angle:0°,30°,37°
