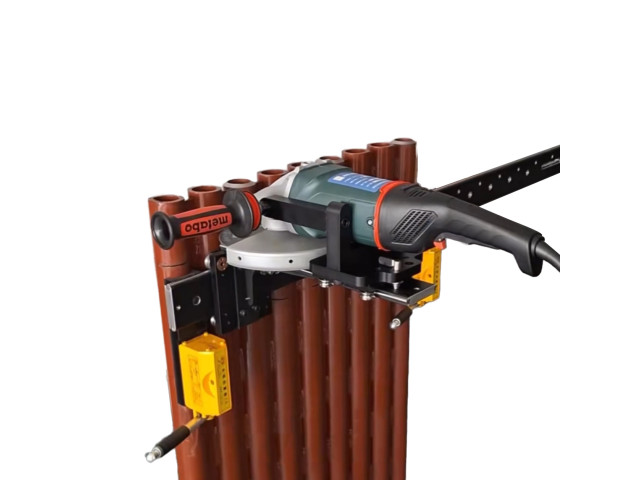

This portable cutting tool is specially designed for boiler tube cutting. With high magnetic force permanent magnet rail system, it quickly adsorbs to the tube surface for stable fixation. The cutter moves precisely along the rail to ensure all cutting surfaces remain coplanar, creating ideal conditions for subsequent beveling or component replacement.
|
Model |
Working Range OD mm |
Rail Length m |
Power kw |
Voltage V |
Fixation |
|
BWC65-I |
≤65 |
1.5 or 3 |
2.4 |
220 |
Magnetic |
|
BWC65-II |
≤65 |
1.5 or 3 |
2.4 |
220 |
Spot Welding |
* Technical parameters are for reference only, subject to final delivery
5 pcs of 230×1.9mm cutting blades
Heavy duty pipe beveling machine is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces. With the special structure designing,
This machine designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping, easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, preheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling
This portable cutting tool is specially designed for boiler tube cutting. With high magnetic force permanent magnet rail system, it quickly adsorbs to the tube surface for stable fixation. The cutter moves precisely along the rail to ensure all cutting surfaces remain coplanar, creating ideal conditions for subsequent beveling or component replacement.
