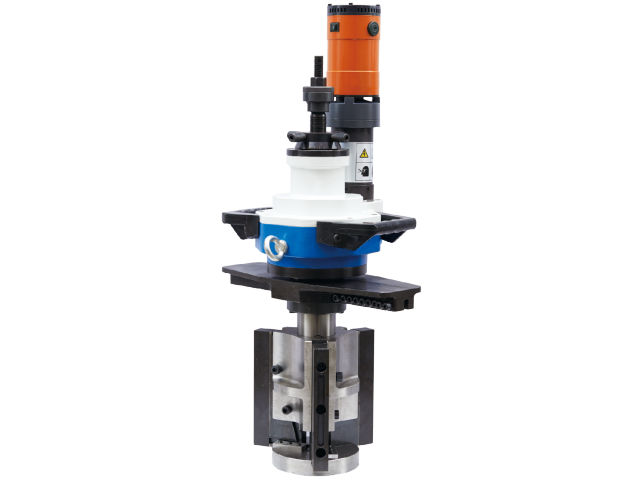

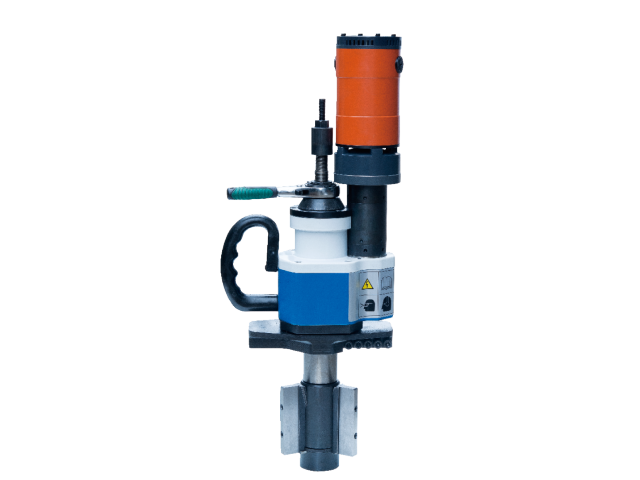

This machine can face and bevel all type of pipe ends, pressure vessel and flanges. it adopts "Y" design to realize the minimal radial working space. With the light weight. It is portable and can be used on-site working situation. it is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. lt is widely applied in heavy type pipe lines
|
Model |
Working range ID mm |
Wall thickness mm |
Power kw |
Rotation rpm |
|
|
Electric |
Pneumatic |
||||
|
ISY-150 |
TCM-150 |
Ф60-170 |
≤15 |
1.43 |
30 |
|
ISY-250 |
TCM-250 |
Ф80-240 |
≤15 |
1.43 |
16 |
|
ISY-351 |
TCM-351 |
Ф150-330 |
≤15 |
1.43 |
10 |
|
ISY-457 |
TCM-457 |
Ф250-430 |
≤15 |
1.43 |
9 |
|
ISY-630 |
TCM-630 |
Ф300-600 |
≤15 |
1.43 |
8 |
|
ISY-850 |
TCM-850 |
Ф600-820 |
≤15 |
2.0 |
7 |
POWER SUPPLIES:
Electric: 1.43 2.0kw @220-230V 50-60Hz,1P
Pneumatic: 1500-2000L/min@0.63-0.8MPa
1.Form Type
Material：M42，W6
size：20*40*8 mm，
angle：0°，30°，37°，-15°

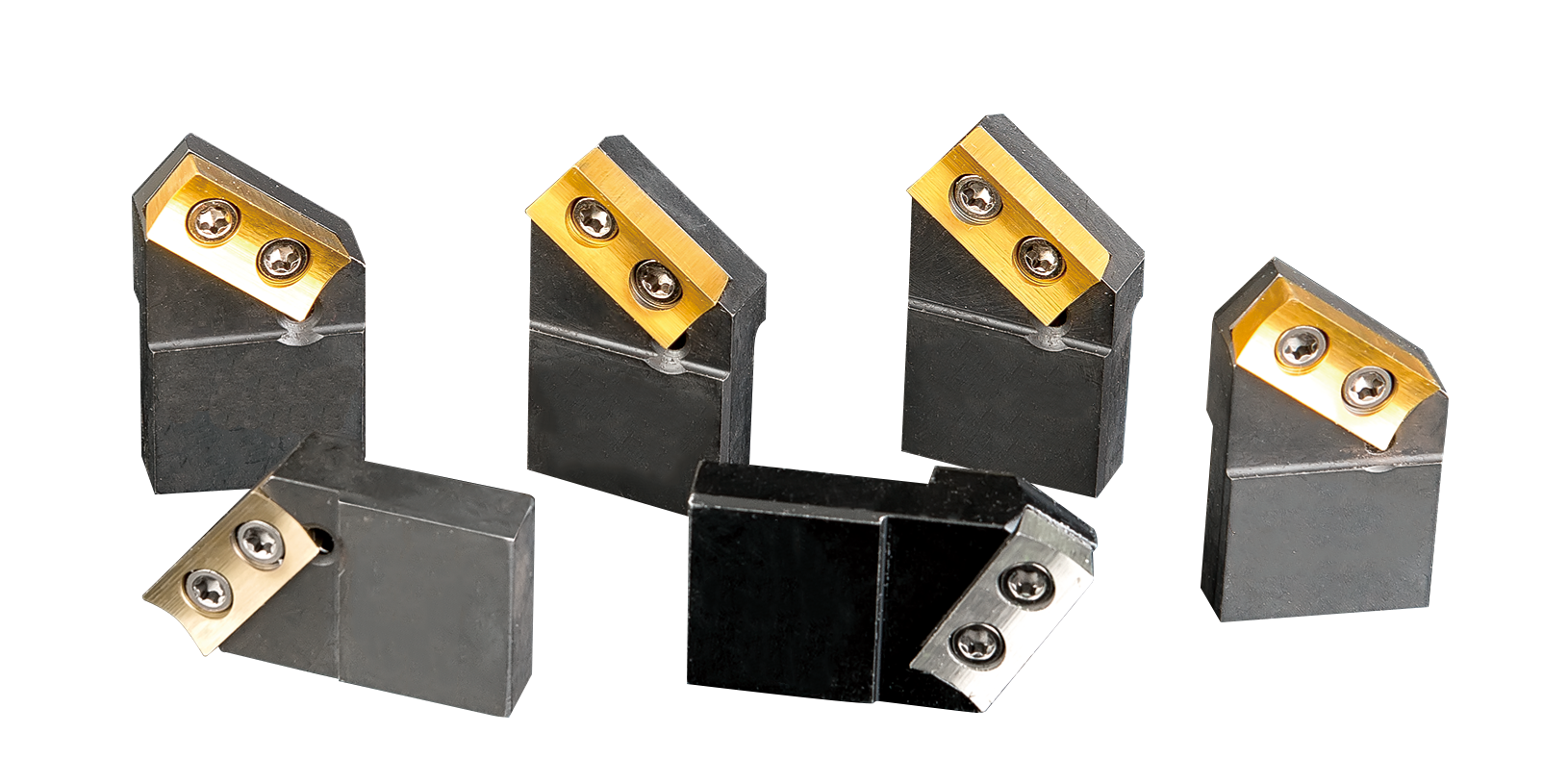

2.Inert Type
Tool holder：40Cr
Insert：Carbide
size:20*40*8 mm
Angle：0°，30°，37°

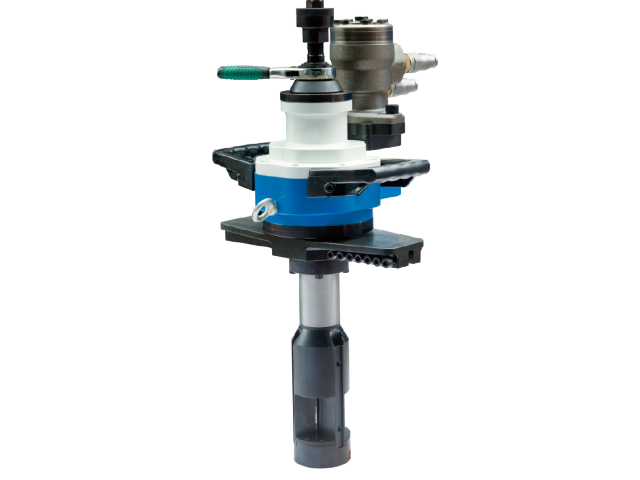

ATCM pneumatic fast beveling machine is designed for bulk small pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional.
This portable cutting tool is specially designed for boiler tube cutting. With high magnetic force permanent magnet rail system, it quickly adsorbs to the tube surface for stable fixation. The cutter moves precisely along the rail to ensure all cutting surfaces remain coplanar, creating ideal conditions for subsequent beveling or component replacement.
This machine can face and bevel all type of pipe ends, pressure vessel and flanges. it adopts "Y" design to realize the minimal radial working space. With the light weight. It is portable and can be used on-site working situation. it is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. lt is widely applied in heavy type pipe lines
