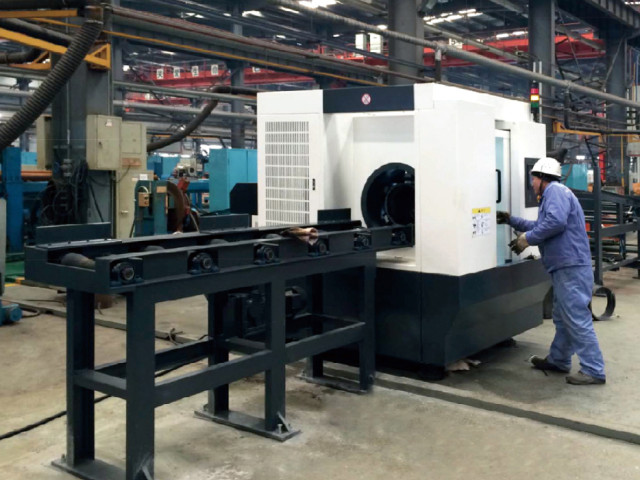

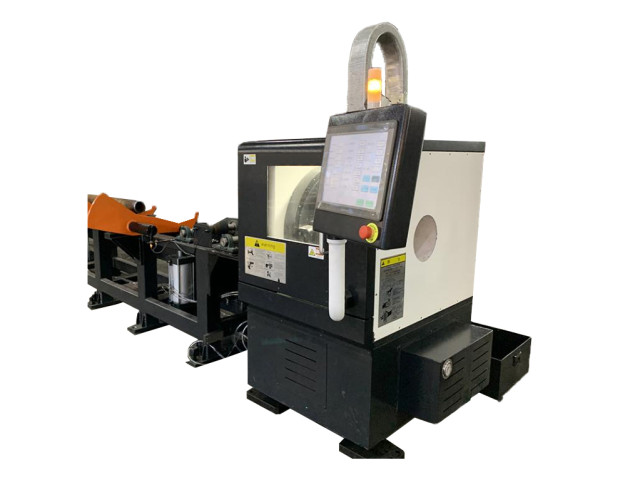

CND is an effective pipe cutting and beveling machine. It was developed cutting and beveling CNC for pipe prefabrication. Adopt variable frequency motor drive, hydraulic clamping system, self-centering system. automatic feeding, electric up-down system. Pipe length setting system and pipe conveying system are optional. advantage with high speed, high precision, high quality of cutting, easy to control. it is the key equipment for pipe prefabrication.
|
Model |
Working Range |
Wall thickness |
Rotation |
Motor power |
|||
|
OD mm |
mm |
rpm |
Cutting |
Clamping |
Up/down |
Feeding |
|
|
CND-168 |
30-168 |
3-25 |
0-100 |
4.5 |
2.2 |
0.55 |
2.0 |
|
CND-325 |
50-325 |
5-25 |
0-50 |
5.5 |
2.2 |
0.55 |
2.0 |
|
CND-450 |
130-450 |
6-25 |
0-42 |
7.5 |
2.2 |
0.55 |
2.0 |
|
CND-610 |
323-610 |
6-50 |
0-33 |
11 |
2.2 |
1.5 |
2.0 |
|
CND-762 |
480-762 |
6-50 |
0-25 |
11 |
2.2 |
1.5 |
2.0 |
|
CND-865 |
580-865 |
6-50 |
0-24 |
11 |
2.2 |
1.5 |
2.0 |
Power requirement：380V,50-60Hz,3P
Up/down travel：200mm
Feeding travel：100mm
pipe length limit：300mm
Angle deviation：±0.5
Vertical deviation：±0.5mm/300mm
Please declare Beveling shape, angle and pipe material in advance

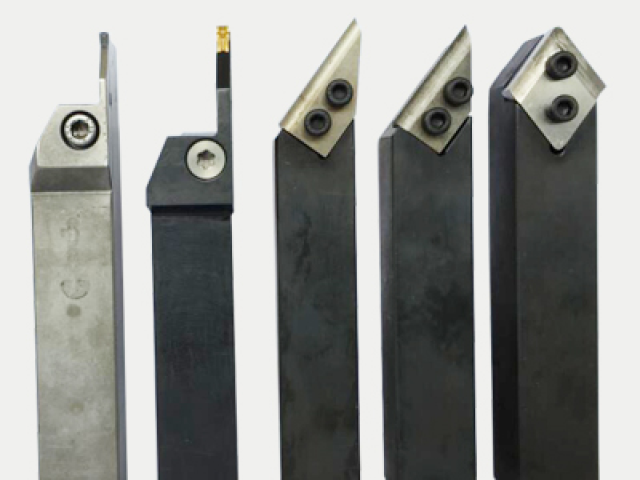

Tool holder:40Cr ;
Insert: CSS or Carbide

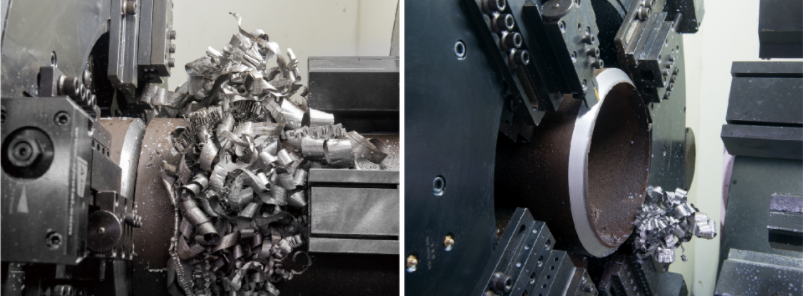

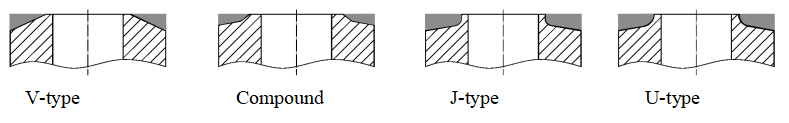

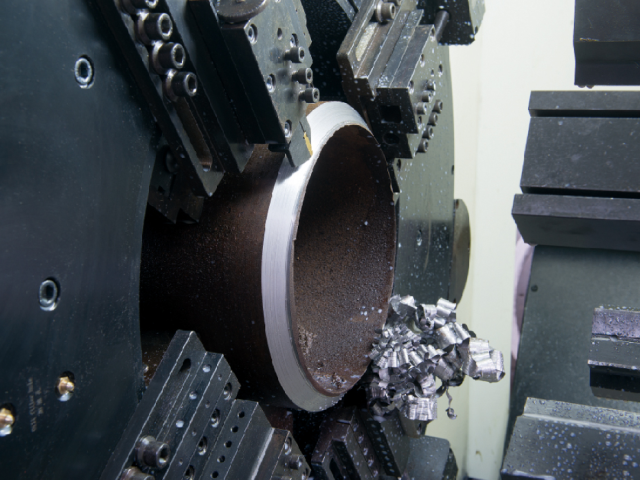

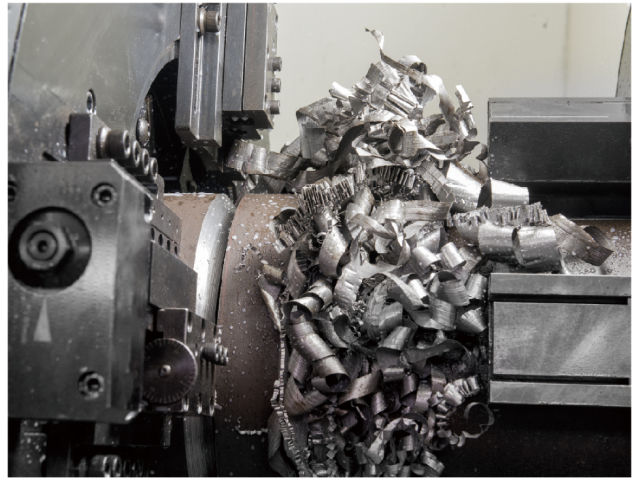

Type：Cut off，beveling，Double beveling
Angle：0°，30°，37.5°，double 30°/37.5°
According to the need to customize.
Optional pipe conveyor and automatic length setting systems, be formulated with highly efficient logistics system, and form pipe cutting and beveling prefabricated production line.
