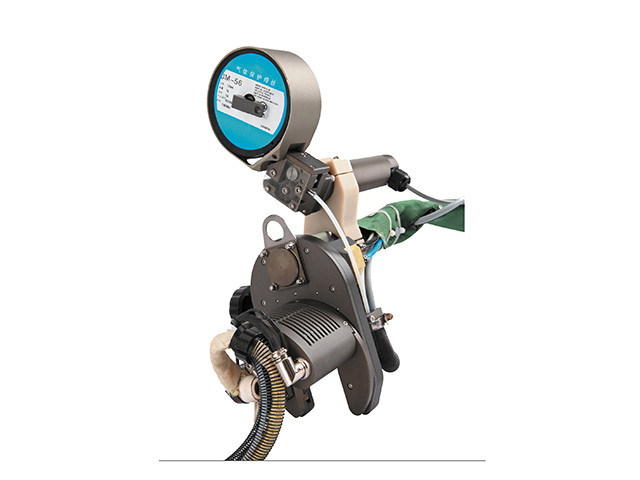

TOA50 Narrow Pitch Pipe Orbital Weld Head For Automatic Tig Welding

This welding head is a special welding head specially designed for tube/pipe TIG welding, suitable for automatic welding of tube/pipe in the form of narrow spacing. It can weld various pipes/pipes such as carbon steel and stainless steel. The diameter of the tube ranges fromΦ32 to Φ51mm, and two methods of wire filling or self-melting can be selected. The arc length and yaw function can be adjusted automatically. It can precisely realize all-position TIG tube/tube welding, with high reproducibility of welding results and ideal welding results. Mainly used in chemical, food, boiler, military and nuclear power industries.

• The main structure has three parts:rotating system, clamping device, transmission system;
• The main part is made of aluminum,the structure is light,and the caliper-type clamping method can be adjusted arbitrarily for different pipe diameters;
• Adopt backlash-free gear transmission design,stable rotation, small moment of inertia, and small working environment at high temperature, no jamming phenomenon;
• Electric arc length yaw design,suitable for multi-pass welding process requirements;
• Suitable for pipe welding of medium-thick-wall carbon steel and stainless steel;
• Circulating water cooling,long continuous working time;
• Self-melting and wire welding;
• It is widely used in the field installation of various joints such as pipe and pipe elbow.
