TOA40 Narrow Spacing Pipe Orbital Welding System

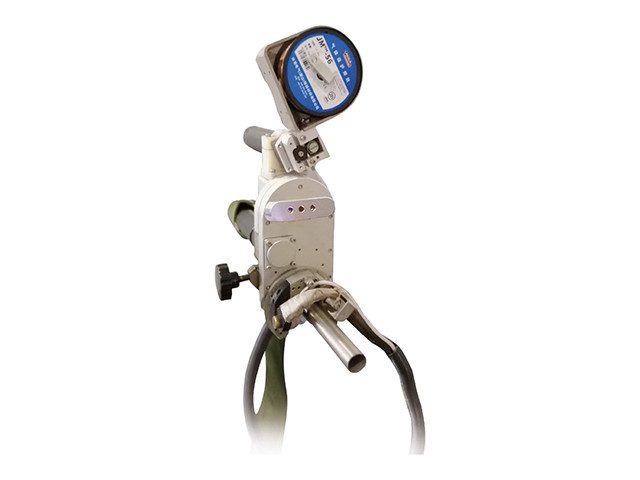

The head is suitable for automatic welding of tubes/pipes in narrow pitch form. It can weld various pipes/pipes such as carbon steel and stainless steel. The diameter of the tube ranges from φ32mm-38mm, and two methods of filling wire or self-melting can be selected. The arc length can be adjusted automatically, and it has a yaw function. It can precisely realize orbital TIG tube/tube welding, with high reproducibility of welding results and ideal welding results. Mainly used in chemical, food, boiler, military and nuclear power industries.

• The main structure has three parts:rotating system, clamping device, transmission system;
• The main part is made of aluminum,the structure is light,and the caliper-type clamping method can be adjusted arbitrarily for different pipe diameters;
• Adopt backlash-free gear transmission design,stable rotation, small moment of inertia, and small working environment at high temperature, no jamming phenomenon;
• Electric arc length yaw design,suitable for multi-pass welding process requirements;
• Suitable for pipe welding of medium-thick-wall carbon steel and stainless steel;
• Circulating water cooling,long continuous working time;
• Self-melting and wire welding;

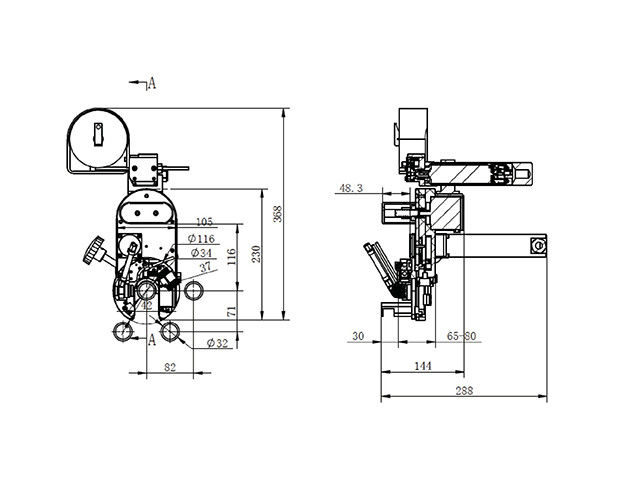

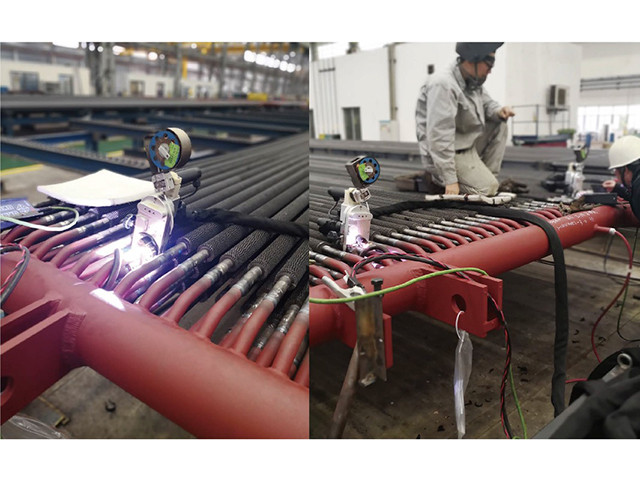

• It is widely used in the field installation of various joints such as pipe and pipe elbow.
