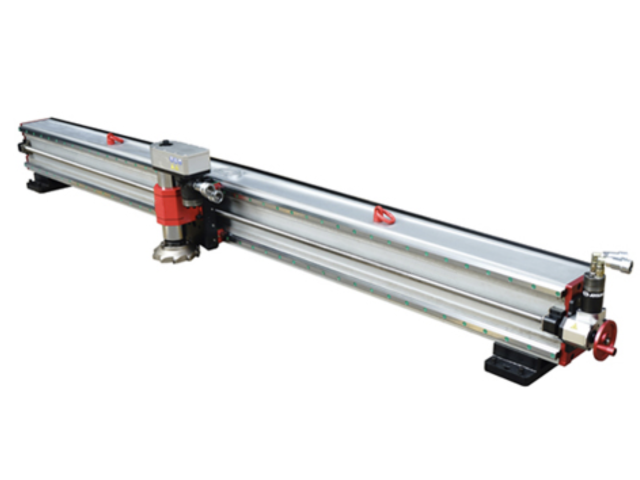

This machine feature an aluminum alloy bed for lightweight construction and a modular structural design. It is commonly used for repairing rectangular base plates, heat exchangers, pump and motor pads, steel mill stands, ship building, turbine split lines, and can be optionally equipped with a magnetic base. The portable milling machine boasts advantages such as quick installation, rapid calibration, powerful drive performance, excellent flexibility, and high precision.
|
Model |
X axis(Bed) Stroke(mm) |
Spindle head stroke(mm) |
Spindle head taper |
Spindle(Rpm) |
Feed rate(mm/min) |
Power unit |
|
LM1000 |
1000 |
150 |
NT40\NT50 |
0-700 |
35-1000 |
2output hydraulic power unit |
|
LM2000 |
2000 |
150 |
NT40\NT50 |
0-700 |
35-1000 |
2output hydraulic power unit |
|
LM3000 |
3000 |
150 |
NT40\NT50 |
0-700 |
35-1000 |
2output hydraulic power unit |
This machine feature an aluminum alloy bed for lightweight construction and a modular structural design. It is commonly used for repairing rectangular base plates, heat exchangers, pump and motor pads, steel mill stands, ship building, turbine split lines, and can be optionally equipped with a magnetic base.

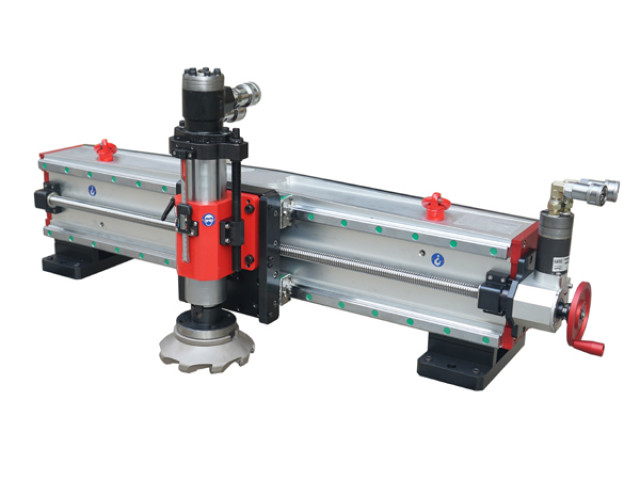

One machine, two on site machining modes, you can flexibly switch between line milling and gantry milling processing modes according to field working conditions and processing requirements.Commonly used for repairing compressor mounting bases, motor pads, ship loaders, mining machinery, and rolling mill housings.
