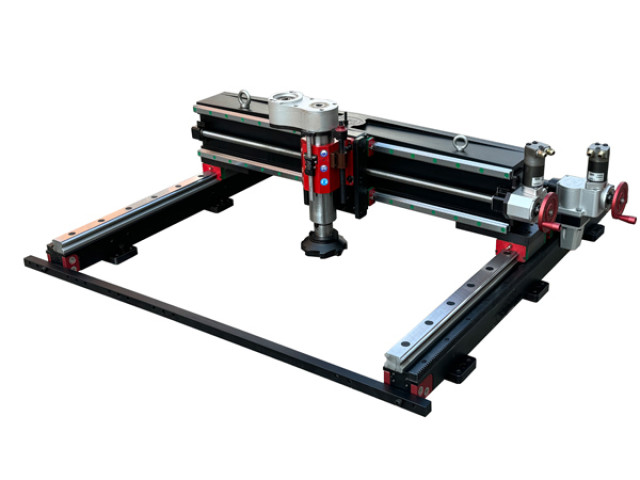

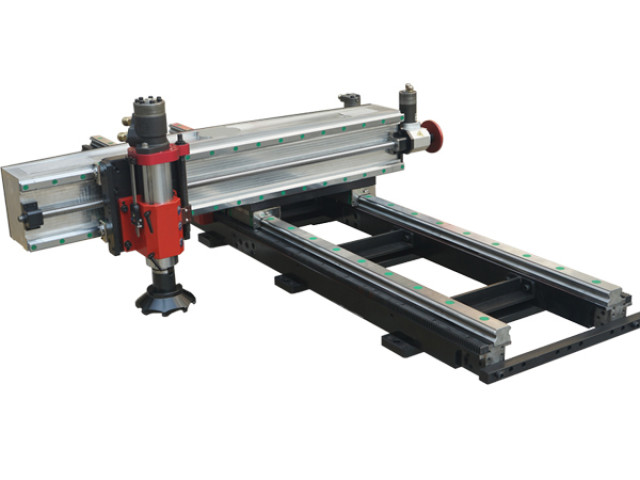

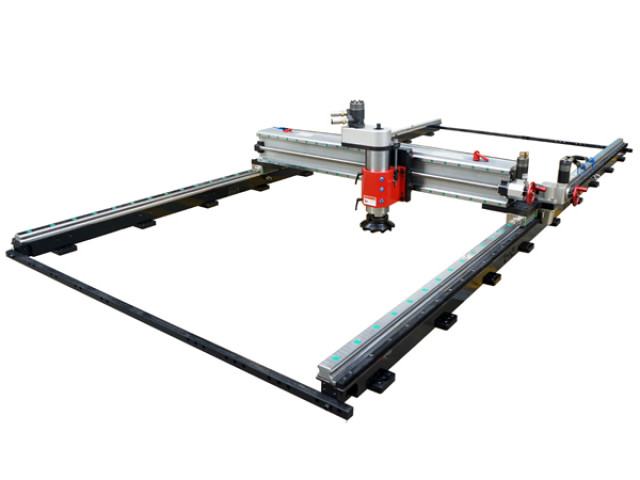

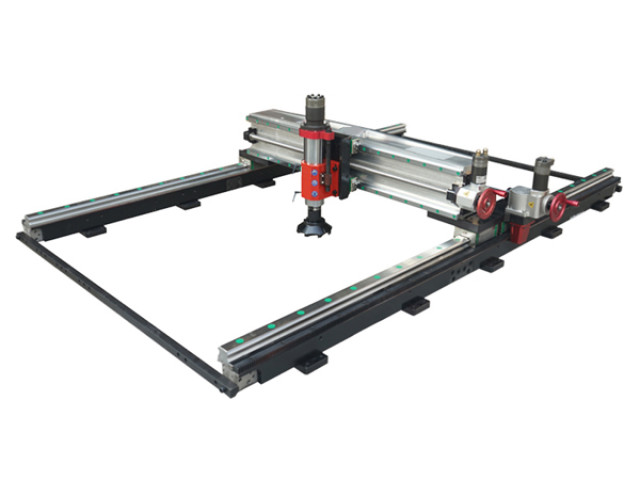

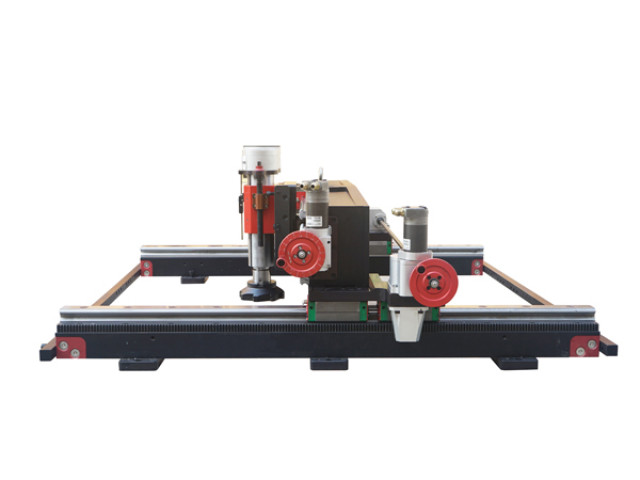

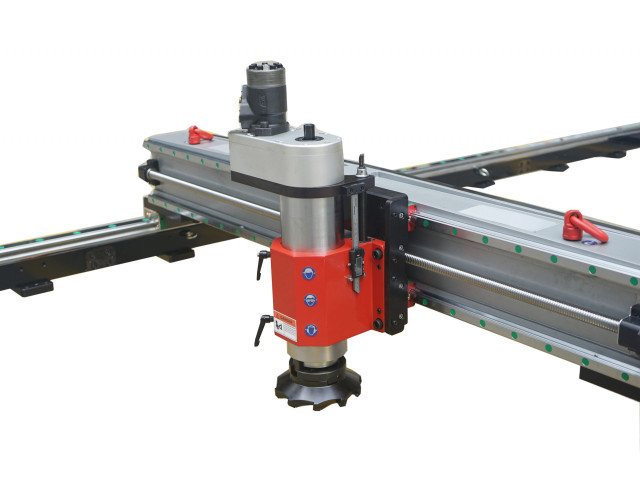

One machine, two on site machining modes, you can flexibly switch between line milling and gantry milling processing modes according to field working conditions and processing requirements.Commonly used for repairing compressor mounting bases, motor pads, ship loaders, mining machinery, and rolling mill housings.
|
Model |
X Axis(Arm) Stroke(mm) |
Y Axis(Arm) Stroke(mm) |
Z Axis Stroke(mm) |
Spindle(Rpm) |
Feed rate mm/min |
Power unit |
|
LMD1000 |
3000 |
1000/1500/2000 |
250 |
0-740 |
35-1000 |
3out hydraulic power unit |
|
LMD2000 |
2000 |
1000/2000/3000 |
250 |
0-740 |
35-1000 |
3out hydraulic power unit |
|
LMD3000 |
3000 |
1000/2000/3000 |
250 |
0-740 |
35-1000 |
3out hydraulic power unit |
|
LMD4000 |
4000 |
1000/2000/3000 |
250 |
0-740 |
35-1000 |
3out hydraulic power unit |
|
LMD5000 |
5000 |
1000/2000/3000 |
250 |
0-740 |
35-1000 |
3out hydraulic power unit |
*

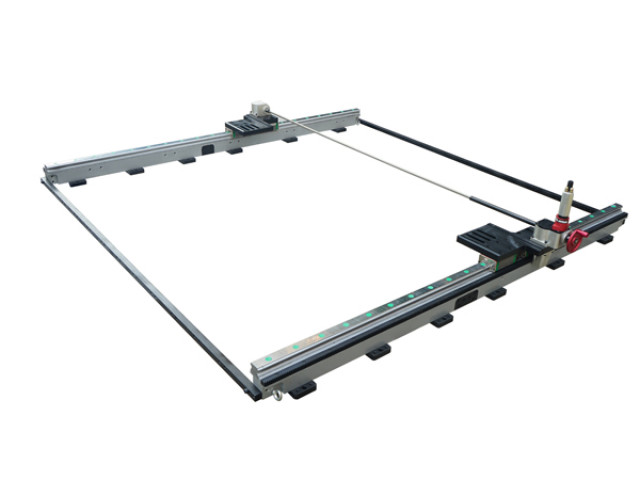

This machine feature an aluminum alloy bed for lightweight construction and a modular structural design. It is commonly used for repairing rectangular base plates, heat exchangers, pump and motor pads, steel mill stands, ship building, turbine split lines, and can be optionally equipped with a magnetic base.
One machine, two on site machining modes, you can flexibly switch between line milling and gantry milling processing modes according to field working conditions and processing requirements.Commonly used for repairing compressor mounting bases, motor pads, ship loaders, mining machinery, and rolling mill housings.
