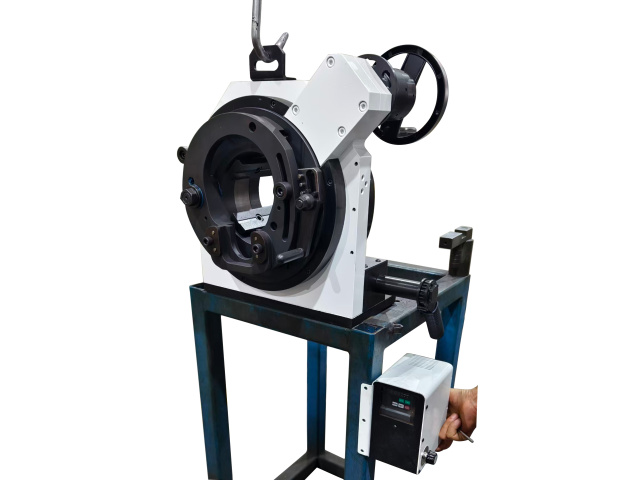

This Machine is a new pipe cutting machine optimized by our company combining domestic and foreign similar products. Super power, durable, Its compact design saves space, is lightweight and portable. Ergonomic handle motor. Drive the cutting head to rotate more safely and conveniently. After cutting, The end face is absolutely vertical without burrs, can be welded directly.
|
Model |
Working range |
Wall thickness |
Rotation |
|
mm |
SS mm |
rpm |
|
|
OSG-120 |
Ф10～120 |
≤5 |
80～120 |
|
OSR-120 |
Ф15～120 |
≤5 |
80～120 |
|
OSE-120 |
Ф15～120 |
≤5 |
80～120 |
|
OSE-170 |
Ф30～170 |
≤5 |
80～120 |
|
OSE-220 |
Ф60～225 |
≤5 |
80～120 |
|
OSE-320 |
Ф140～330 |
≤5 |
80～120 |
|
OSE-420 |
Ф215～420 |
≤5 |
80～120 |
|
OSE-520 |
Ф315～520 |
≤5 |
80～120 |
|
OSE-620 |
Ф346～630 |
≤5 |
80～120 |
|
OSE-720 |
Ф486～760 |
≤5 |
80～120 |
The TPC Manual Pipe Cutter is a specialized explosion-proof cutting tool designed for use in flammable and explosive environments within the petroleum and chemical industries. Its core design objective is to prevent sparks or high temperatures during operation, thereby avoiding ignition of combustible gases, liquids, or dust. The blades are mounted on a hinged mechanical structure that rotates or compresses the pipe to achieve cold cutting. It allows cutting operations within a minimum clearance space of 5 inches.

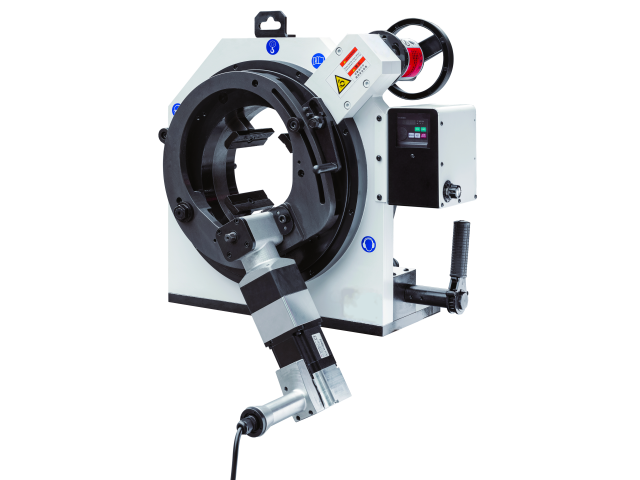

This Machine is a new pipe cutting machine optimized by our company combining domestic and foreign similar products. Automatic feeding Super power, durable, Its compact design saves space, is lightweight and portable. Servo motor drive the cutting head to rotate more safely and conveniently. After cutting, The end face is absolutely vertical without burrs, can be welded directly.
This Machine is a new pipe cutting machine optimized by our company combining domestic and foreign similar products. Super power, durable, Its compact design saves space, is lightweight and portable. Ergonomic handle motor. Drive the cutting head to rotate more safely and conveniently. After cutting, The end face is absolutely vertical without burrs, can be welded directly.
