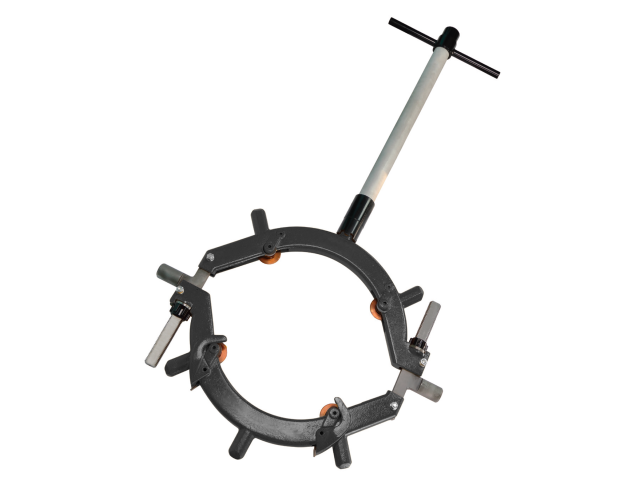

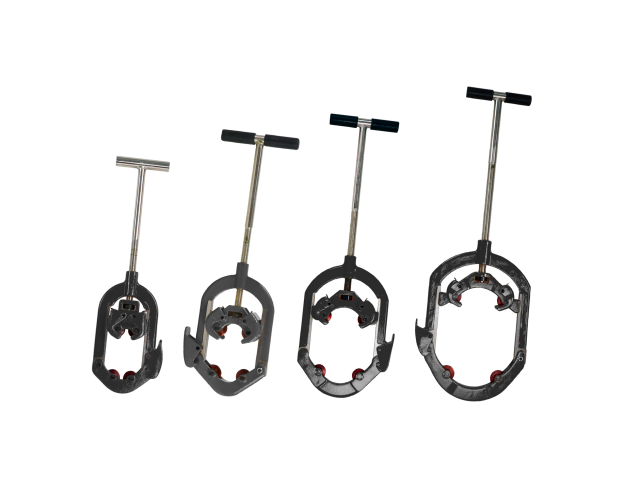

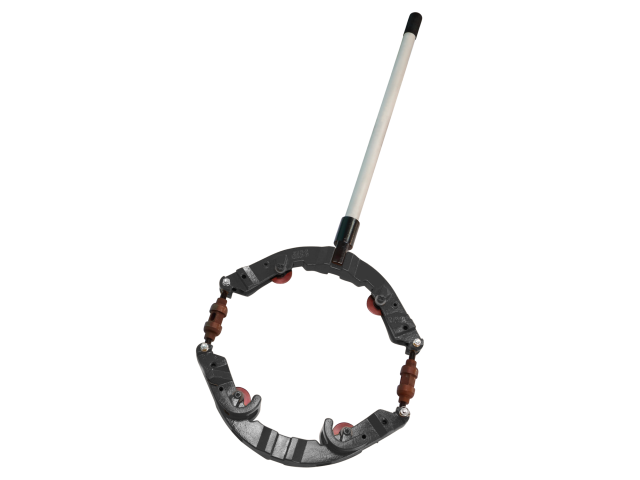

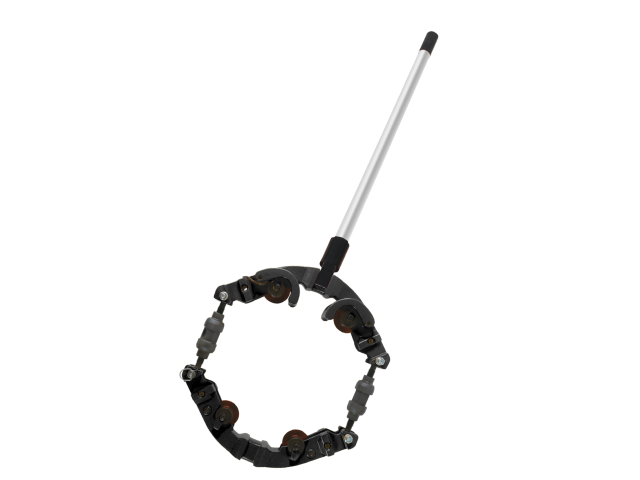

TPC Manual Pipe Cutter

The TPC Manual Pipe Cutter is a specialized explosion-proof cutting tool designed for use in flammable and explosive environments within the petroleum and chemical industries. Its core design objective is to prevent sparks or high temperatures during operation, thereby avoiding ignition of combustible gases, liquids, or dust. The blades are mounted on a hinged mechanical structure that rotates or compresses the pipe to achieve cold cutting. It allows cutting operations within a minimum clearance space of 5 inches.

OVERVIEW

The TPC Manual Pipe Cutter is a specialized explosion-proof cutting tool designed for use in flammable and explosive environments within the petroleum and chemical industries. Its core design objective is to prevent sparks or high temperatures during operation, thereby avoiding ignition of combustible gases, liquids, or dust. The blades are mounted on a hinged mechanical structure that rotates or compresses the pipe to achieve cold cutting. It allows cutting operations within a minimum clearance space of 5 inches.

FEATURES

  • ​Low-clearance rotary pipe cutter
  • ​Lightweight for easy portability
  • ​Four blades work simultaneously, completing cuts with a 90-degree back-and-forth swing
  • ​Completely cold cutting process with explosion-proof functionality
  • ​Split-type handle used on large-diameter models for reduced effort

SPECIFICATION

Model

Handle Type

Working Range

Working Thickness

Weight

mm

mm

kg

TPC2

Integral

Ф12.7~51

≤4

3.0

TPC3

Integral

Ф32~76

≤5

3.4

TPC4

Integral

Ф60~114

≤6

7

TPC6

Integral

Ф114~168

≤7.1

9.8

TPC8

Integral

Ф168~219

≤8.2

12.2

TPC10

Split

Ф168~273

≤15

21

TPC12

Integral

Ф219~325

≤8.2

20.3

TPC14

Split

Ф273~356

≤13

31.8

TPC18

Split

Ф356~457

≤15

44

TPC22

Split

Ф457~559

≤15

50.4

TPC30

Split

Ф698~864

≤15

128.9

TPC36

Split

Ф813~915

≤15

134
