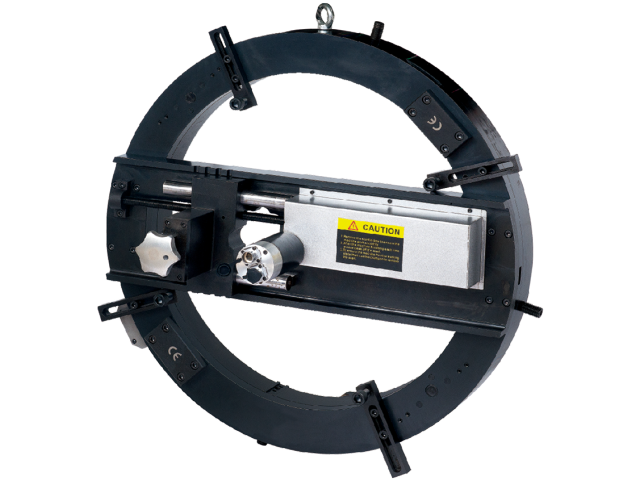

This machine is new type flange facer. It is designed for both flange and all the complicated pipe end processing. It is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. which makes the complex maintenance and the construction of flange and pipeline in field much easier.
|
Model |
Clamping range |
Working range |
Tool stroke mm |
Power kw |
|||
|
OD mm |
mm |
Radial |
Axial |
Spindle |
Radial |
Axial |
|
|
SSYO-500 |
Ф100-500 |
Ф100-500 |
200 |
100 |
2.0 |
0.4 |
0.4 |
|
SSYO-1000 |
Ф200-1000 |
Ф200-1000 |
400 |
100 |
2.0 |
0.4 |
0.4 |
|
SSYO-1500 |
Ф1000-1500 |
Ф300-1500 |
600 |
100 |
2.0 |
0.4 |
0.4 |
|
SSYO-2500 |
Ф1500-2500 |
Ф610-2500 |
945 |
100 |
5.5 |
0.4 |
0.4 |
|
SSYO-3000 |
Ф2500-3000 |
Ф1000-3000 |
1000 |
100 |
7.5 |
0.4 |
0.4 |
Electric: 220-230V,50-60Hz,1P
This machine is designed for the Flange facing, seal groove, serrated finish, weld prep. and counter-boring. with the latest line and ball screw technology, the equipment adopts the modular design concept as a whole.
This machine is designed for the Flange face, seal groove and serrated finish, weld prep. and counter boring. with the latest line and ball screw technology, the equipment adopts the modular design concept as a whole. each step of design takes the field processing as the starting point.
This machine is new type flange facer. It is designed for both flange and all the complicated pipe end processing. It is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. which makes the complex maintenance and the construction of flange and pipeline in field much easier.
