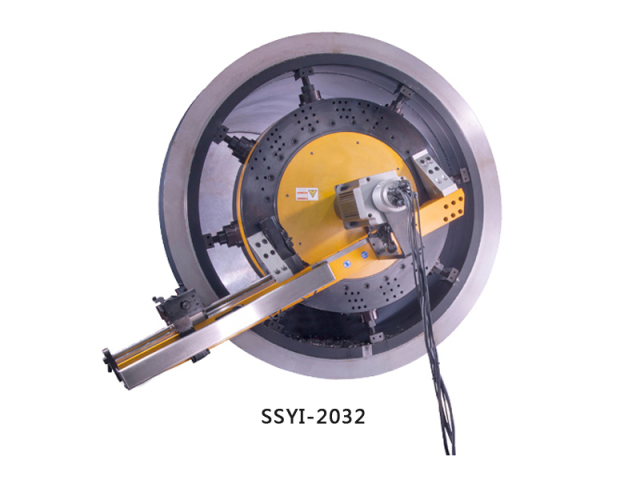

This CNC designed for both flange and all the complicated pipe end processing. It is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. The tools are controlled by the program, which makes the complex maintenance and the construction of flange and pipeline in field much easier.
|
Model |
Clamping range |
Working range |
Tool stroke mm |
Power kw |
|||
|
ID mm |
mm |
Radial |
Axial |
Spindle |
Radial |
Axial |
|
|
SSYI-610 |
Ф200-500 |
Ф200-610 |
210 |
100 |
2.0 |
0.4 |
0.4 |
|
SSYI-1020 |
Ф400-1020 |
Ф400-1020 |
250 |
100 |
2.0 |
0.4 |
0.4 |
|
SSYI-1420 |
Ф400-1420 |
Ф400-1420 |
400 |
100 |
2.0 |
0.4 |
0.4 |
|
SSYI-2030 |
Ф800-2030 |
Ф1140-2030 |
420 |
100 |
5.5 |
0.4 |
0.4 |
|
SSYI-3050 |
Ф2210-2810 |
Ф2210-3030 |
420 |
100 |
7.5 |
0.4 |
0.4 |
|
SSYI-4520 |
Ф2210-4520 |
Ф2210-4520 |
1156 |
100 |
11 |
0.4 |
0.4 |
Electric: 220-230V,50-60Hz,1P
This CNC designed for both flange and all the complicated pipe end processing. It is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. The tools are controlled by the program, which makes the complex maintenance and the construction of flange and pipeline in field much easier.
This machine is designed for the Flange face, seal groove and serrated finish, weld prep. and counter boring. with the latest line and ball screw technology, the equipment adopts the modular design concept as a whole. each step of design takes the field processing as the starting point.
This machine is new type flange facer. It is designed for both flange and all the complicated pipe end processing. It is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. which makes the complex maintenance and the construction of flange and pipeline in field much easier.
