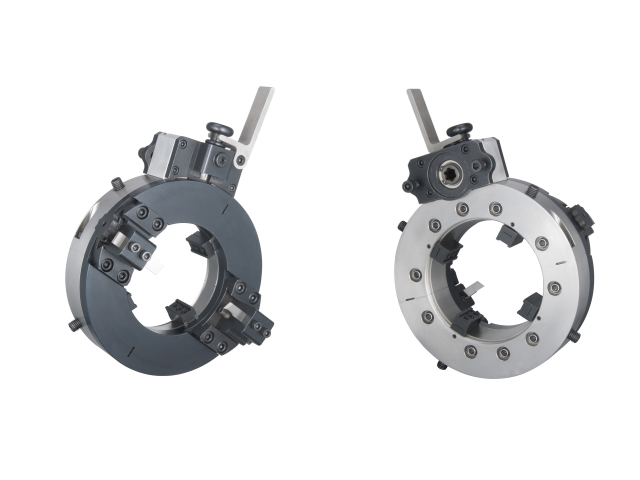

Mini Split Frame Pipe Cutting And Beveling Machine

Mini split frame pipe cutting and beveling machine used by pipe fitters and welders in weld preparation for industrial pipe. smartly designed, ability to split in half at the frame, easy to install on the pipe line. This series product is the most small and compact split frame clamshell style, small size, avoid interference, especially suitable for tight places, such as exhaust pipe, elbow, pipe racks, etc., mainly used in boiler, power generation, oil, gas and shipbuilding. Nine models are available in 0.5 or 1inch (25.4mm) increments, with additional sizes available by special order.

• Cutting, beveling and counter-boring
• Clever designed, small size, avoid interference.
• Aluminum body, light weight, one - handed operation.
• Out-mounted style, clamping by multi point jaws.
• Split frame technology, easy to install on the pipeline.
• Cold cutting and beveling, don’t influence the pipe’s material.
• Auto feed, cutting and beveling at the one time, cost effective.

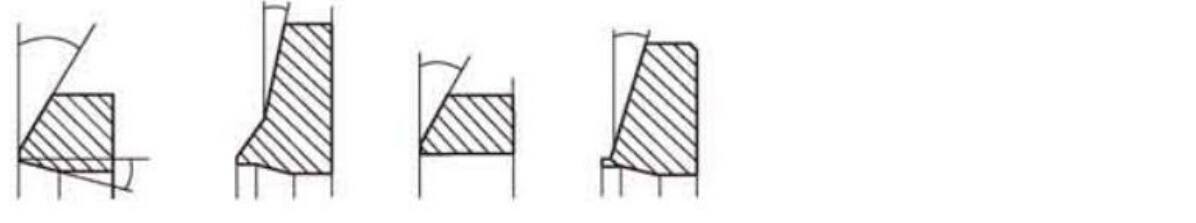

• Varity of beveling shape: “U”,“V”,“J”.
• Non-standard model can be customized
• 9 models are available in pipe OD 1/2”-6”
• Electric. Pneumatic drive options are available.

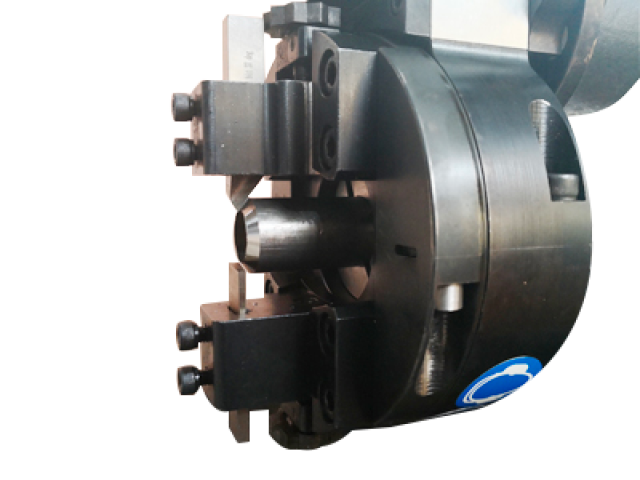

1、Pipe cut off

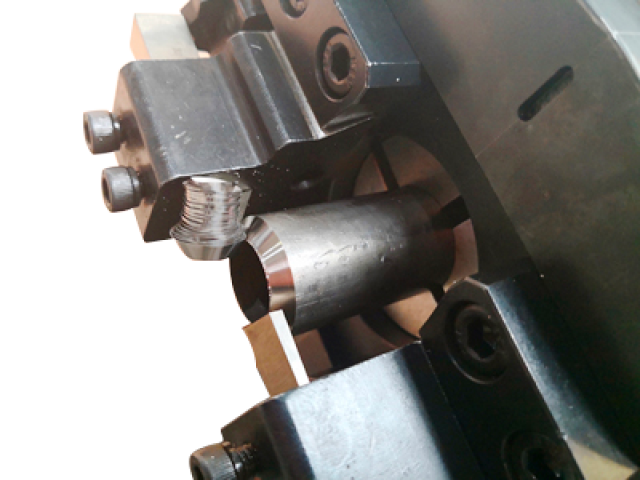

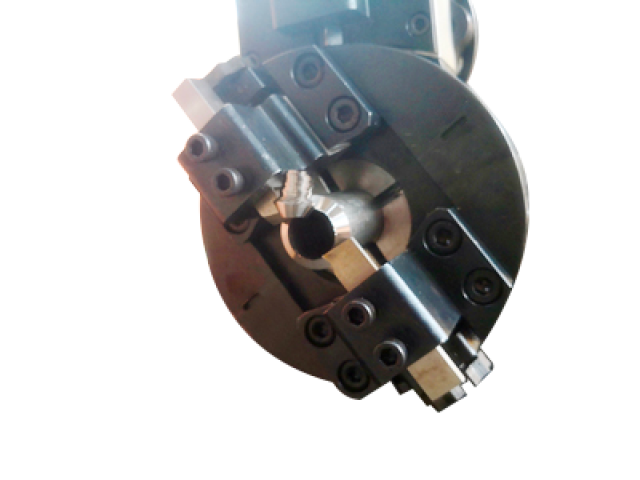

2、Pipe end beveling

3、Pipe facing

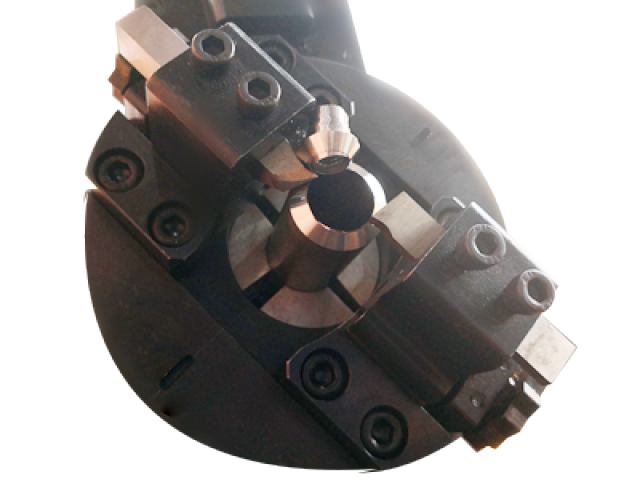

4、Cutting and beveling

Above parameters just for reference only, not acceptance criteria

*other beveling shape, angle and pipe material, please declare before order

Material：HSS-Co M42 and HSS M35,

Type：Sever，Bevel，
Angle：0degree，30deree，37.5degree，
