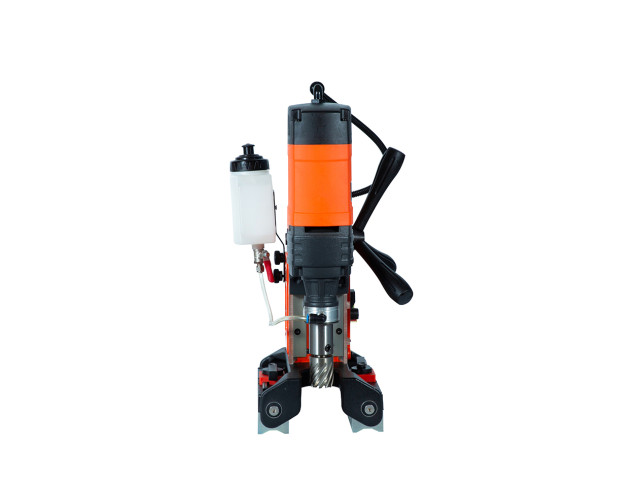

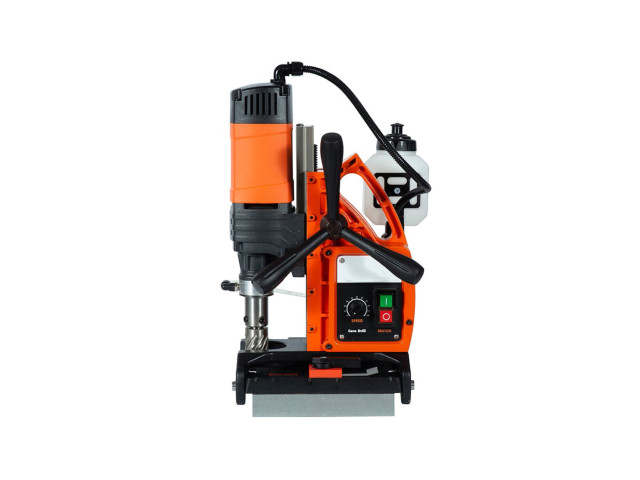

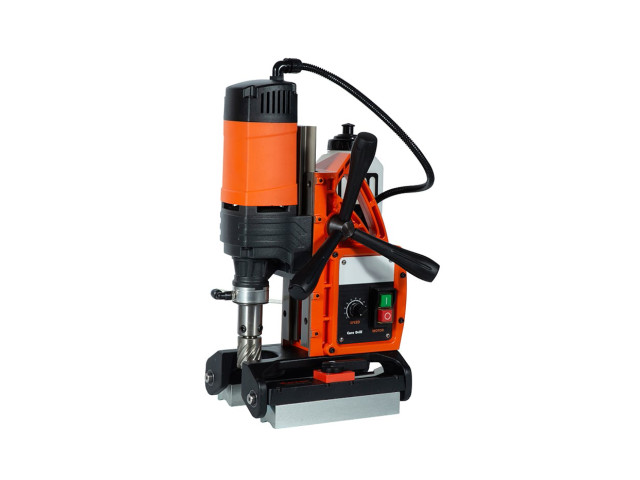

Magnetic pipe drill is designed for drilling operations on large metal pipes, steel structures, and other workpieces. Utilizing the electromagnetic effect, it generates a powerful suction force at the base, firmly onto the pipe surface. It is highly suitable for scenarios requiring overhead, field, or complex-angle operations, such as pipeline installation and maintenance.
|
Model |
Hole drill OD mm |
Twist drill OD mm |
Tapping OD mm |
Cutting thickness mm |
Stroke mm |
Rotation rpm |
Attraction Max N |
Power KW |
|
MPD-35PM |
Φ35 |
Φ16 |
- |
35 |
≤210 |
830 |
16000 |
1.6 |
|
MPD-50PM |
Φ50 |
Φ16 |
- |
40 |
≤230 |
780 |
16500 |
1.7 |
|
MPD-50/2PM |
Φ50 |
Φ16 |
- |
40 |
≤230 |
320 560 |
16500 |
1.7 |
|
MPD-60/2PM |
Φ60 |
Φ25 |
M20 |
50 |
≤220 |
100-210 520 |
15800
|
1.89 |
|
MPD-80/3PM |
Φ80 |
Φ32 |
M24 |
60 |
≤230 |
100-210 380 520 |
16800 |
2.28 |
*Customized solutions are available; please specify your requirements when ordering.
This machine designed for industrial pipe drilling and boring. chain locking positioning is adopted to install on pipe surface. It can be operated at any position and angle. Equipped with high power motor, strong power, high output torque, meet thick wall pipe drilling. Small volume, light weight, simple operation
Magnetic pipe drill is designed for drilling operations on large metal pipes, steel structures, and other workpieces. Utilizing the electromagnetic effect, it generates a powerful suction force at the base, firmly onto the pipe surface. It is highly suitable for scenarios requiring overhead, field, or complex-angle operations, such as pipeline installation and maintenance.
