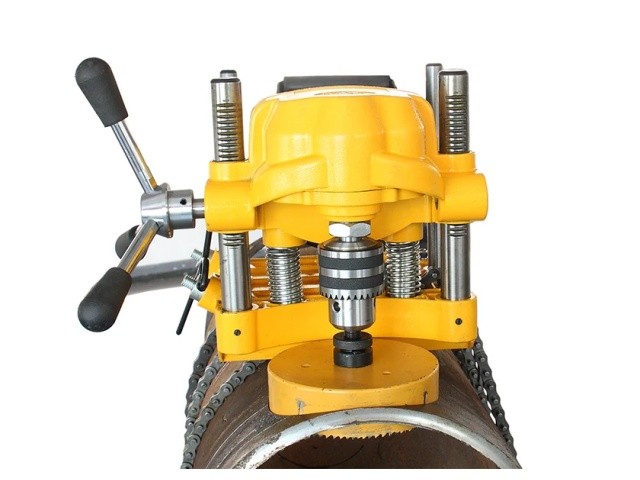

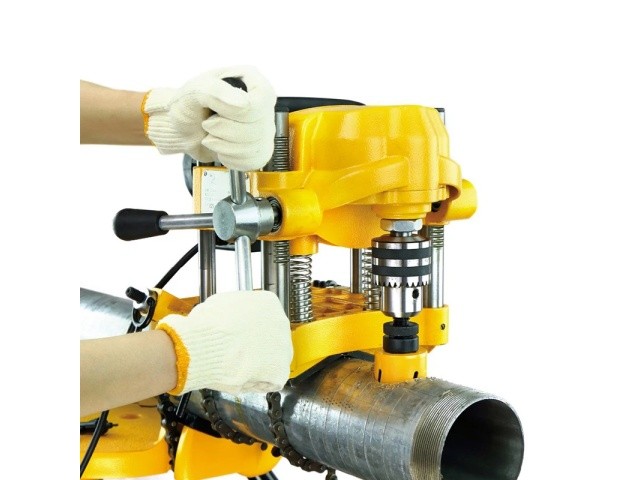

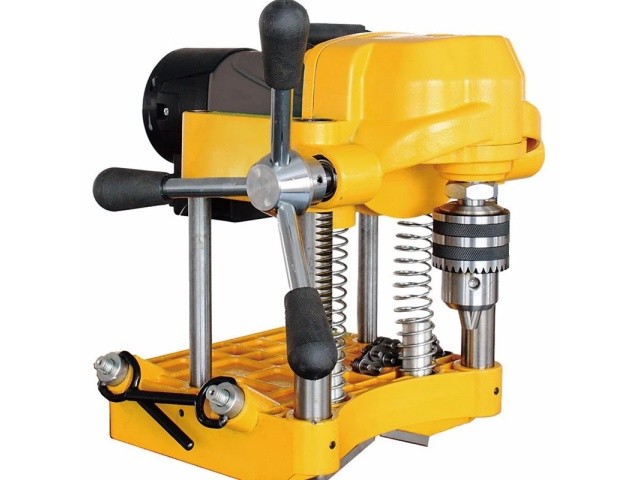

This machine designed for pipe hole cutting up to 114mm into steel pipe. The multiple hole sizes allow the use of Mechanical fittings for branching unpres-surized pipe lines.
Light weight for easy transportation, ideal for the hole cutting in small sizes. Induction motor ensures quiet working performance
|
Model |
Pipe OD mm |
Hole diameter mm |
Wall thickness mm |
Power |
|
JK-114 |
32-220 |
14-210 |
10 |
2.0KW |
|
JK-150 |
30-300 |
16-152 |
10 |
1.5KW |
Different drilling tool size drill different hole, please declare before order

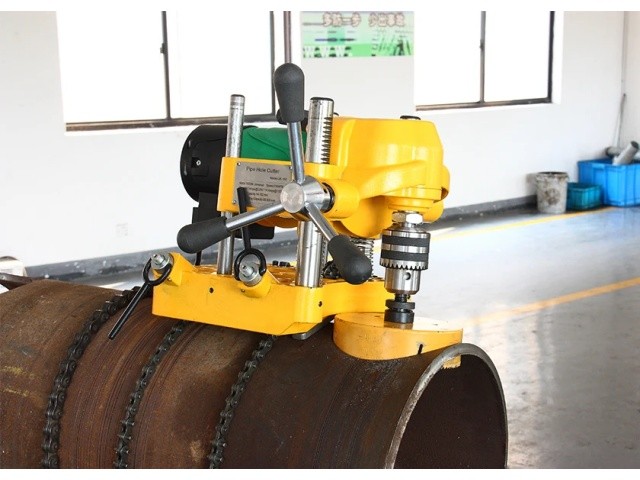

This machine designed for industrial pipe drilling and boring. chain locking positioning is adopted to install on pipe surface. It can be operated at any position and angle. Equipped with high power motor, strong power, high output torque, meet thick wall pipe drilling. Small volume, light weight, simple operation
This machine designed for pipe hole cutting up to 114mm into steel pipe. The multiple hole sizes allow the use of Mechanical fittings for branching unpres-surized pipe lines.
Leak-Free Enveloping Plugging Tee and Leak-Free Flange Plugging Assembly
Composed of tee, plug, guard plate, blind plate, sealing gasket, high-strength bolts & nuts, as well as clamping plate and pig locator. During operation, the plug is secured within the flange sealing surface of the branch outlet via the clamping plate. A pig locator beneath the plug connects with the pre-cut arc plate from pipeline tapping. During plugging installation, the plug repositions the arc section (cut by the tapping tool) back to its original pipeline location to maintain future pigging capability.
