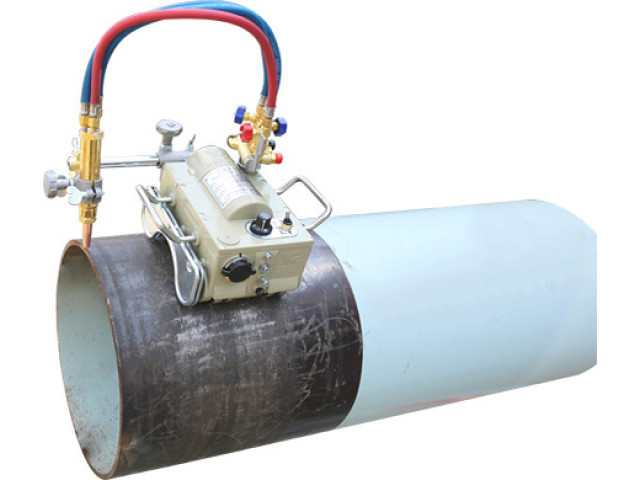

This Machine has is smartly designed, with an integrated, durable body and low center of gravity. Equipped with high-strength internal magnets and ferromagnetic wheels, ensures smooth crawling motionalong pipelines. The machine delivers high-quality circumferential cuts, multi-angle cutting. Ideal for industries such as petroleum, chemical, shipbuilding, power generation, machinery, and construction.
|
Model |
Working Range |
Wall thickness |
Cutting speed |
Magnetic Adsorbability |
|
OD mm |
mm |
mm/min |
kg |
|
|
CG2-11 |
≥108 |
6-50 |
50-750 |
>50 |
|

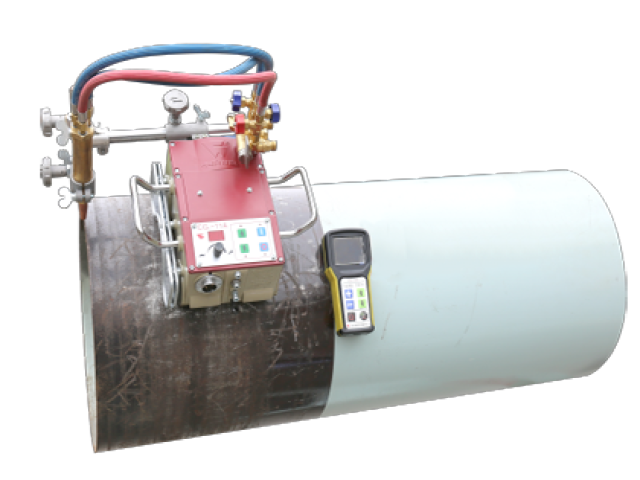

CG2-11A(wireless remote control) |
≥108 |
6-50 |
50-750 |
>50 |
|

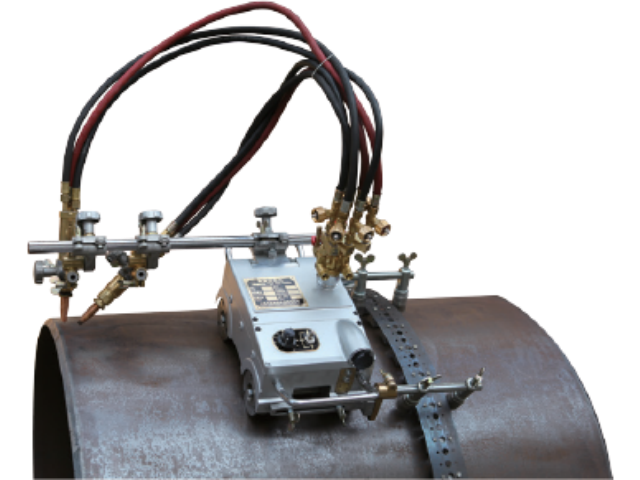

CG2-11-II(Dual torch) |
≥110 |
6-50 |
50-750 |
>50 |
Power requirement：AC220V,50Hz
V-type
please declare Beveling shape, angle and pipe material in advance
This series of cutting machines is a device that uses gas combustion to generate high temperature and perform thermal cutting on metal plates. It is widely used in the cutting and beveling of seamless steel pipes in factories and mines such as petroleum, chemical, shipbuilding, electric power, machinery, and steel structures. It has a compact design, light weight, can operate continuously, has high cutting efficiency, and low cost of use.
This series of cutting machines is a device that uses gas combustion to generate high temperature and perform thermal cutting on metal plates.
The "CG1-30C" portable automatic gas cutting machine is a new product developed and manufactured by Warwick Company. The internal structure of the machine is reasonably designed and the appearance is beautiful. Under the guidance of customers
