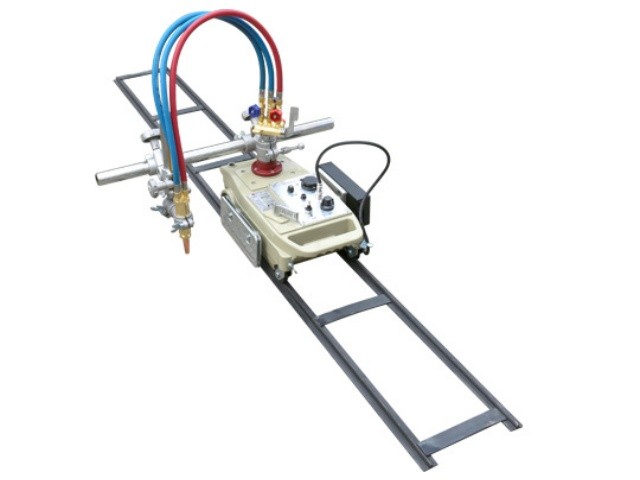

CG1-30C Battery Powered Flame Cutting Machine

The "CG1-30C" portable automatic gas cutting machine is a new product developed and manufactured by Warwick Company. The internal structure of the machine is reasonably designed and the appearance is beautiful. Under the guidance of customers

Description

The "CG1-30C" portable automatic gas cutting machine is a new product developed and manufactured by Warwick Company. The internal structure of the machine is reasonably designed and the appearance is beautiful. Under the guidance of customers, a number of technical and process improvements have been made. Due to the use of new materials and strict requirements on parts processing technology, the operability, durability and heat insulation of the machine have been greatly improved. This machine is equipped with a battery power supply that can realize automatic cutting in an environment without an external power supply. The battery is durable and can work for nearly 12 hours after each full charge. It can also be connected to an ordinary municipal power supply (AC220V) and driven by the built-in transformer output for cutting operations.

Description

Description

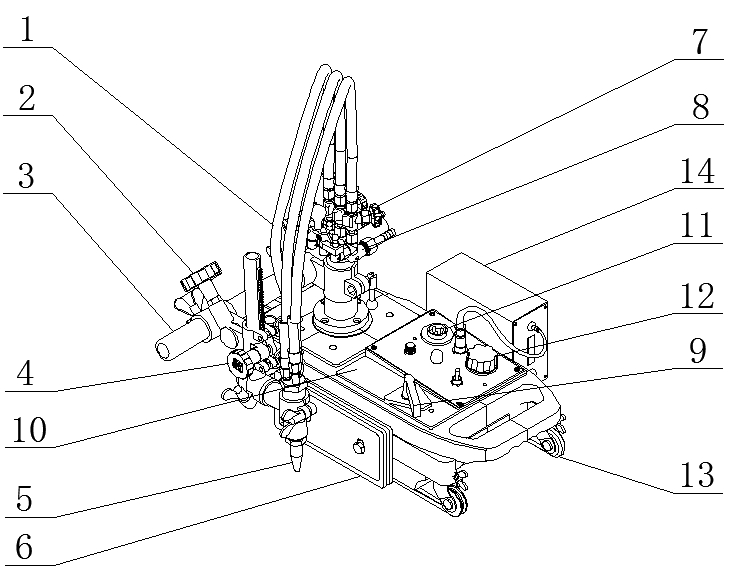

1. Gas delivery hose: There are three hoses in total, namely fuel gas, preheating oxygen and cutting oxygen



8. Gas distributor

9. Clutch handle: Align the tip of the handle with "STOP" to release; align it with "START" to close.

2. Horizontal hand wheel: adjust the horizontal position of the cutting torch

10. Host

3. Transverse rack

11. Speed ​​knob

4. Cutting torch vertical adjustment hand wheel

The speed increases from "0" to "10", and decreases in the opposite direction

5. Cutting mouth

12. Power socket

6. Heat insulation board: prevents the heat generated by cutting from diffusing into the machine

13. Universal wheel

7. Gas two-way valve: adjust the gas flow

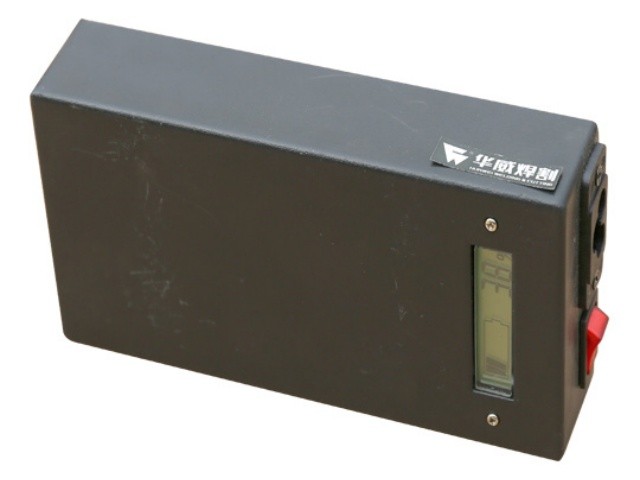

14. Lithium battery

Technical specifications

1. Weight

14.8 kg

2. Device size

435×210×240 mm

3. Speed ​​control

Thyristor control

4. Power supply

Lithium battery

5. Cutting speed

50~750/mm/min

6. Cutting thickness

5~100mm

7. Bevel angle

0~45°

8. Cutting circle diameter

ø200~ø2000mm

9. Cutting nozzle

G02(for acetylene),G03(for propane)

10. Motor

DC 110V 50HZ 30W Speed ​​4200r/min



Packing List

Carefully remove the unit from the box.

First, inspect the components to verify they are complete.

The following is a list of parts for acceptance of a standard single torch configuration.

1. Main unit

1 set

2. Cutting torch

1 set

3. Cutting nozzle (acetylene)

3 pieces

4. Wrench

1 set

5. Up and down moving seat

1 set

6. Left and right moving seat (including large horizontal rack)

1 set

7. Power cord

1 strip

8. Radius gauge (positioning screw)

1 piece

9. Instruction manual, certificate of conformity

1 set

10. Air inlet connector

1 each
