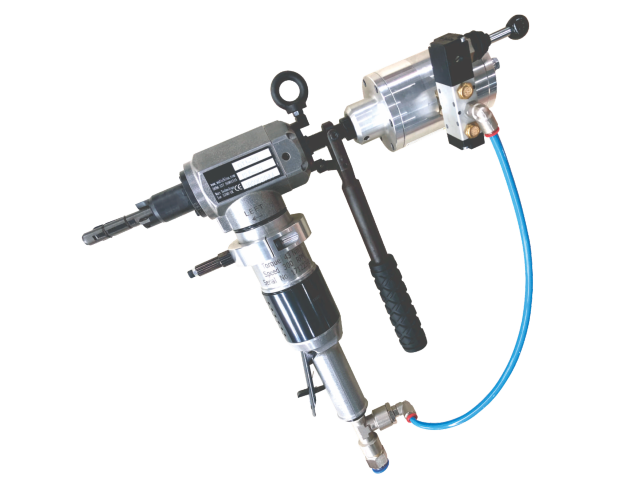

ATCM Pipe Facing Machine

ATCM Pipe Facing Machine

ATCM pneumatic fast beveling machine is designed for bulk small pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional.

OVERVIEW

ATCM pneumatic fast beveling machine is designed for bulk small pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on.

FEATURES

  • Cold cutting, without influence the material of the pipes
  • ID mounted, fasting positioning clamping
  • Manual and auto feeding is optional.
  • Fast feeding and retracting ensure few minutes to facing.
  • Remove extra length of the pipe and weld seam, fast face and bevel pipes
  • Applicable to end facing of various grades of metal pipes CS,SS and alloy steel.

SPECIFICATION

   Model

ATCM-24

ATCM-48

Feeding

Manual

Manual

Working range

Φ12.4-24mm

Φ24-48mm

Tool stoke

20mm

20mm

Max.Wall thickness

5mm

5mm

No-load speed

300rpm

300rpm

Torque

50Nm

50Nm

Power

1.3HP

1.3HP

Air consuming

0.7m³/min

0.7m³/min

Machine body Max width

59mm

59mm

Net Weight

7KG

8KG
