XLCT series hollow hydraulic torque wrench

XLCT series hollow hydraulic torque wrench

XLCT series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench acts directly on the nut, and its volume is thin and light, which is very suitable for working in a small space. The XLCT series hollow wrench can adapt to different working conditions by replacing the working head and assembling the reducer sleeve. It covers all bolts from S19 to S175.

Product introduction

XLCT series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench acts directly on the nut, and its volume is thin and light, which is very suitable for working in a small space. The XLCT series hollow wrench can adapt to different working conditions by replacing the working head and assembling the reducer sleeve. It covers all bolts from S19 to S175.

Product features

  • Retraction pawl design overcomes the reversal of the wrench ratchet and improves work efficiency and torque accuracy
  • Hollow design, the wrench acts directly on the nut, the torque is more accurate and easier to use
  • The axial power head can be replaced with a radial power head to adapt to different working conditions
  • Integrated extended design, longer force arm, stronger reliability

Specifications

XLCT Series Hydraulic Torque Wrench Selection Table

Model

Torque range(N.m)

Nut opposite side(mm)

Power head weight(Kg)

Working head weight(Kg)

L

H1

H2

W1

W2

2XLCT

232-2328

241-2414

19-55

60

1

1

1.6

1.7

196.4

196.4

125.9

128.5

102.3

105

32

32

51

51

4XLCT

585-2510

585-5021

585-5858

647-6474

34-36

41

46-65

70-80

2

2

4.4

4.6

245

245

177

187

135.7

145.7

42

42

66

66

8XLCT

1094-10941

1177-11774

41-95

10-105

3.3

3.3

8

8.4

300

301

207

216

169

178

53

53

83

83

14XLCT

1852-18521

50-117

5.5

11.6

361

239

204

64

99

30XLCT

4188-41882

4459-44593

110-155

160-175

11.4

11.4

29

30

430

441

303

315

272

285

85

85

131

131



Specifications

XLCT series hollow torque wrench standard working head selection table

2XLCT

4XLCT

8XLCT

Model

R

A

Maximum torque

Model

R

A

Maximum torque

Model

R

A

Maximum torque

2XLCT-19

27

16

2328

4XLCT-34

36

16

2510

8XLCT-41

46

22

10941

2XLCT-22

27

14

2328

4XLCT-36

36

15

2510

8XLCT-46

46

19

10941

2XLCT-27

27

11

2328

4XLCT-41

39

15

5021

8XLCT-50

46

17

10941

2XLCT-30

29

12

2328

4XLCT-46

42

15

5858

8XLCT-55

50

18

10941

2XLCT-32

29

11

2328

4XLCT-50

44

15

5858

8XLCT-60

52

17

10941

2XLCT-34

31

11

2328

4XLCT-55

46

14

5858

8XLCT-65

55

17

10941

2XLCT-36

31

10

2328

4XLCT-60

50

15

5858

8XLCT-70

58

17

10941

2XLCT-41

34

10

2328

4XLCT-65

53

15

5858

8XLCT-75

60

17

10941

2XLCT-46

37

10

2328

4XLCT-70

56

15

6474

8XLCT-80

63

17

10941

2XLCT-50

40

11

2328

4XLCT-75

59

15

6474

8XLCT-85

66

16

10941

2XLCT-55

43

11

2328

4XLCT-80

61

15

6474

8XLCT-90

69

17

10941

2XLCT-60

45

11

2414









8XLCT-95

71

16

10941

















8XLCT-100

75

17

11774

















8XLCT-105

78

17

11774



14XLCT

30XLCT

Model

R

A

Maximum torque

Model

R

A

Maximum torque

14XLCT-50

60

31

18521

30XLCT-85

78

28

41882

14XLCT-55

60

28

18521

30XLCT-90

78

28

41882

14XLCT-60

60

25

18521

30XLCT-95

83

28

41882

14XLCT-65

60

22

18521

30XLCT-100

83

25

41882

14XLCT-70

60

19

18521

30XLCT-105

89

28

41882

14XLCT-75

63

19

18521

30XLCT-110

89

25

41882

14XLCT-80

66

19

18521

30XLCT-115

95

28

41882

14XLCT-85

69

19

18521

30XLCT-117

95

27

41882

14XLCT-90

72

20

18521

30XLCT-120

95

25

41882

14XLCT-95

74

19

18521

30XLCT-125

101

29

41882

14XLCT-100

77

19

18521

30XLCT-130

101

26

41882

14XLCT-105

80

19

18521

30XLCT-135

104

26

41882

14XLCT-110

83

19

18521

30XLCT-140

110

29

41882

14XLCT-115

87

20

18521

30XLCT-145

110

26

41882

14XLCT-117

87

19

18521

30XLCT-150

116

29

41882









30XLCT-155

116

26

41882









30XLCT-160

128

36

44593









30XLCT-165

128

33

44593









30XLCT-170

128

30

44593









30XLCT-175

128

27

44593

Matching pump station

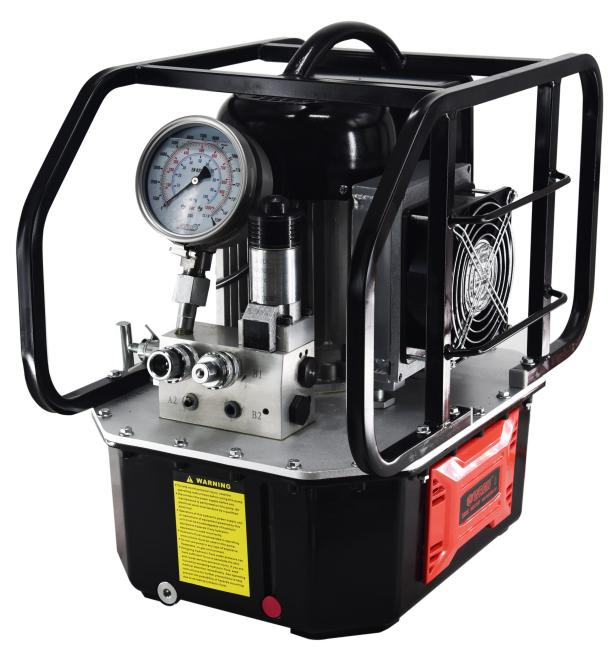

KLW4010 series:
Working pressure: 70Mpa
Drive mode: electric
Voltage: 220V/50Hz
Power: 1.1KW
Oil tank capacity: 8L
Flow rate: 7-1.6-0.8L/min
Cooler: Yes
Oil output port: 4X1/4”NPT or 8X1/4”NPT

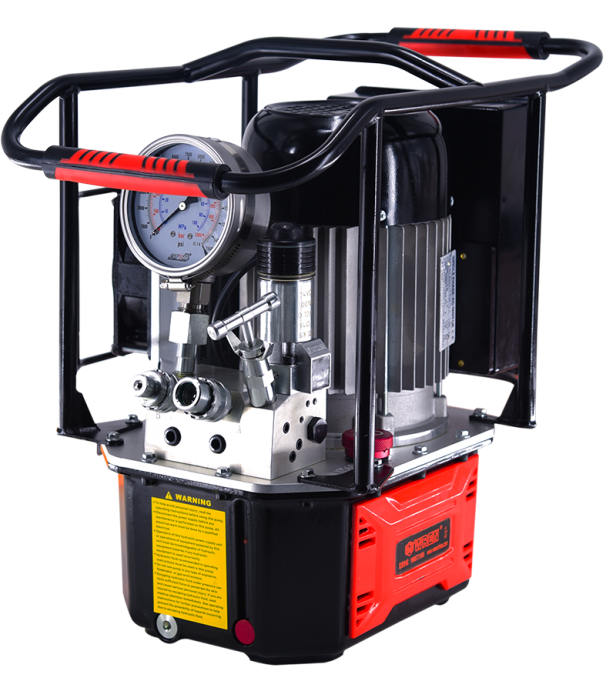

LP3 series:
Working pressure: 55Mpa
Drive mode: electric
Voltage: 220V/50Hz
Power: 1.1KW
Oil tank capacity: 5.5L
Flow rate: 7-1.6-0.8L/min
Cooler: Yes
Oil outlet: 4X1/4”NPT or 8X1/4”NPT

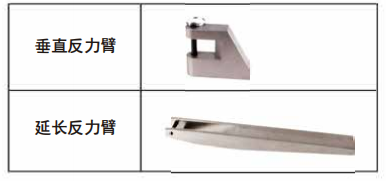

Optional accessories

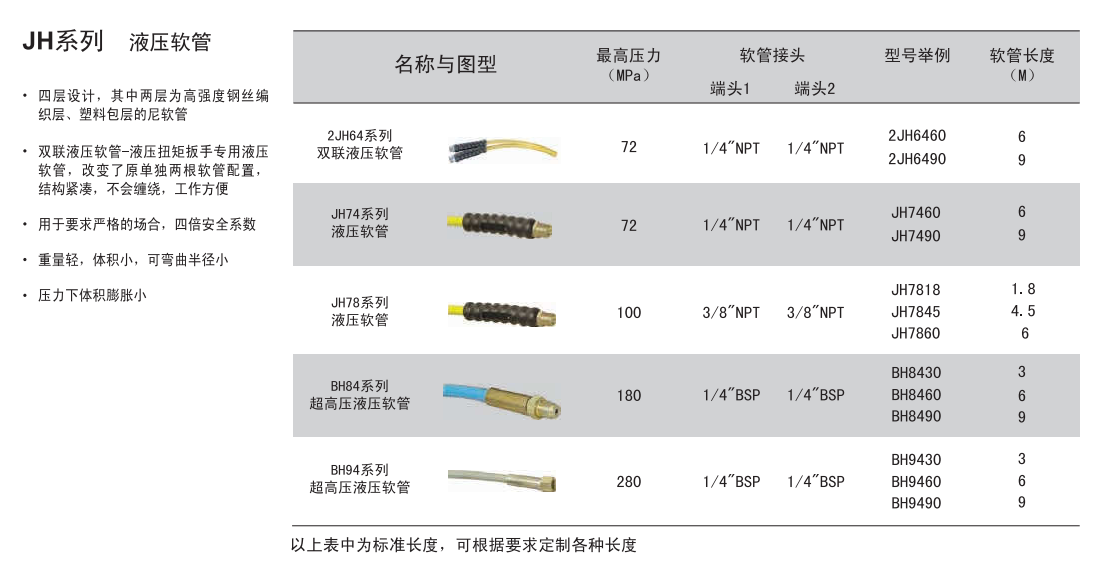

Matching oil pipe

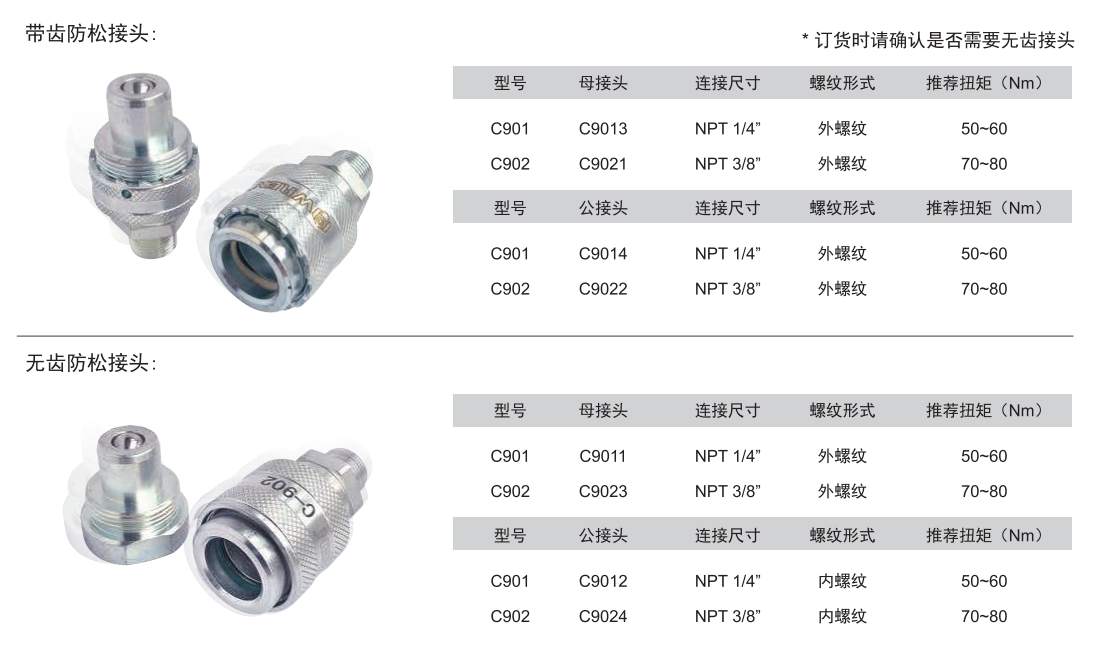

Matching connector
