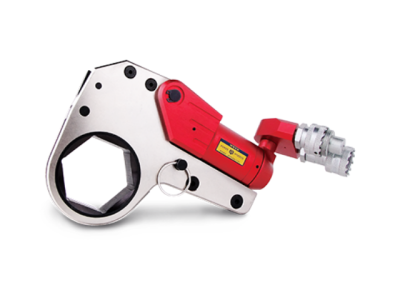

LOW series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench directly acts on the nut, and its volume is thin and light, which is very suitable for working in a small space. The LOW series hollow wrench can replace the working head and assemble the reducer to adapt to different working conditions. It covers all bolts from S19 to S175.
LOW series hydraulic torque wrench selection table
|
Model |
Torque range(N.m) |
Nut opposite side(mm) |
Power head weight(Kg) |
Working head weight(Kg) |
L |
H1 |
H2 |
W1 |
W2 |
|
2LOW |
232-2328 241-2414 |
19-55 60 |
1 1 |
1.6 1.7 |
196.4 196.4 |
125.9 128.5 |
102.3 105 |
32 32 |
51 51 |
|
4LOW |
585-2510 585-5021 585-5858 647-6474 |
34-36 41 46-65 70-80 |
2 2 |
4.4 4.6 |
245 246 |
177 187 |
135.7 145.7 |
42 42 |
66 66 |
|
8LOW |
1094-10941 1177-11774 |
41-95 100-105 |
3.3 3.3 |
8 8.4 |
300 301 |
207 216 |
169 178 |
53 53 |
83 83 |
|
14LOW |
1852-18521 |
50-117 |
5.5 |
11.6 |
361 |
239 |
204 |
64 |
99 |
|
30LOW |
4188-41882 4459-44593 |
110-155 160-175 |
11.4 11.4 |
29 30 |
430 441 |
430 441 |
272 285 |
85 85 |
131 131 |
LOW series hollow torque wrench standard working head selection table
|
2LOW |
4LOW |
8LOW |
|||||||||
|
Model |
R |
A |
Maximum Torque |
Model |
R |
A |
Maximum Torque |
Model |
R |
A |
Maximum Torque |
|
2LOW-19 |
27 |
16 |
2328 |
4LOW-34 |
36 |
16 |
2510 |
8LOW-41 |
46 |
22 |
10941 |
|
2LOW-22 |
27 |
14 |
2328 |
4LOW-36 |
36 |
15 |
2510 |
8LOW-46 |
46 |
19 |
10941 |
|
2LOW-27 |
27 |
11 |
2328 |
4LOW-41 |
39 |
15 |
5021 |
8LOW-50 |
46 |
17 |
10941 |
|
2LOW-30 |
29 |
12 |
2328 |
4LOW-46 |
42 |
15 |
5858 |
8LOW-55 |
50 |
18 |
10941 |
|
2LOW-32 |
29 |
11 |
2328 |
4LOW-50 |
44 |
15 |
5858 |
8LOW-60 |
52 |
17 |
10941 |
|
2LOW-34 |
31 |
11 |
2328 |
4LOW-55 |
46 |
14 |
5858 |
8LOW-65 |
55 |
17 |
10941 |
|
2LOW-36 |
31 |
10 |
2328 |
4LOW-60 |
50 |
15 |
5858 |
8LOW-70 |
58 |
17 |
10941 |
|
2LOW-41 |
34 |
10 |
2328 |
4LOW-65 |
53 |
15 |
5858 |
8LOW-75 |
60 |
17 |
10941 |
|
2LOW-46 |
37 |
10 |
2328 |
4LOW-70 |
56 |
15 |
6474 |
8LOW-80 |
63 |
16 |
10941 |
|
2LOW-50 |
40 |
11 |
2328 |
4LOW-75 |
59 |
15 |
6474 |
8LOW-85 |
66 |
16 |
10941 |
|
2LOW-55 |
43 |
11 |
2328 |
4LOW-80 |
61 |
15 |
6474 |
8LOW-90 |
69 |
17 |
10941 |
|
2LOW-60 |
46 |
11 |
2414 |
|
|
|
|
8LOW-95 |
71 |
16 |
10941 |
|
|
|
|
|
|
|
|
|
8LOW-100 |
75 |
17 |
11774 |
|
|
|
|
|
|
|
|
|
8LOW-105 |
78 |
17 |
11774 |
|
14LOW |
30LOW |
|||||||
|
Model |
R |
A |
Maximum Torque |
Model |
R |
A |
最大扭矩 |
|
|
14LOW-50 |
60 |
31 |
18521 |
30LOW-85 |
78 |
28 |
41882 |
|
|
14LOW-55 |
60 |
28 |
18521 |
30LOW-90 |
78 |
27 |
41882 |
|
|
14LOW-60 |
60 |
25 |
18521 |
30LOW-95 |
83 |
28 |
41882 |
|
|
14LOW-65 |
60 |
22 |
18521 |
30LOW-100 |
83 |
25 |
41882 |
|
|
14LOW-70 |
60 |
19 |
18521 |
30LOW-105 |
89 |
28 |
41882 |
|
|
14LOW-75 |
63 |
19 |
18521 |
30LOW-110 |
89 |
25 |
41882 |
|
|
14LOW-80 |
66 |
19 |
18521 |
30LOW-115 |
95 |
28 |
41882 |
|
|
14LOW-85 |
69 |
19 |
18521 |
30LOW-117 |
95 |
27 |
41882 |
|
|
14LOW-90 |
72 |
20 |
18521 |
30LOW-120 |
95 |
25 |
41882 |
|
|
14LOW-95 |
74 |
19 |
18521 |
30LOW-125 |
101 |
29 |
41882 |
|
|
14LOW-100 |
77 |
19 |
18521 |
30LOW-130 |
101 |
26 |
41882 |
|
|
14LOW-105 |
80 |
19 |
18521 |
30LOW-135 |
104 |
26 |
41882 |
|
|
14LOW-110 |
83 |
19 |
18521 |
30LOW-140 |
110 |
29 |
41882 |
|
|
14LOW-115 |
87 |
20 |
18521 |
30LOW-145 |
110 |
26 |
41882 |
|
|
14LOW-117 |
87 |
19 |
18521 |
30LOW-150 |
116 |
29 |
41882 |
|
|
|
|
|
|
30LOW-155 |
116 |
26 |
41882 |
|
|
|
|
|
|
30LOW-160 |
128 |
36 |
44593 |
|
|
|
|
|
|
30LOW-165 |
128 |
33 |
44593 |
|
|
|
|
|
|
30LOW-170 |
128 |
30 |
44593 |
|
|
|
|
|
|
30LOW-175 |
128 |
27 |
44593 |
|
 |

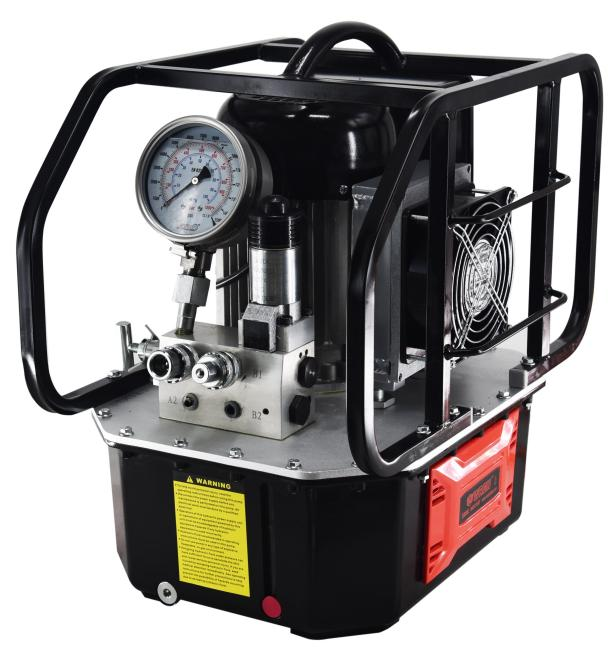

KLW4010 Series: Working pressure: 70Mpa Drive mode: Electric Voltage: 220V/50Hz Power: 1.1KW Oil tank capacity: 8L Flow rate: 7-1.6-0.8L/min Cooler: Yes Oil outlet: 4X1/4”NPT or 8X1/4”NPT |
 |

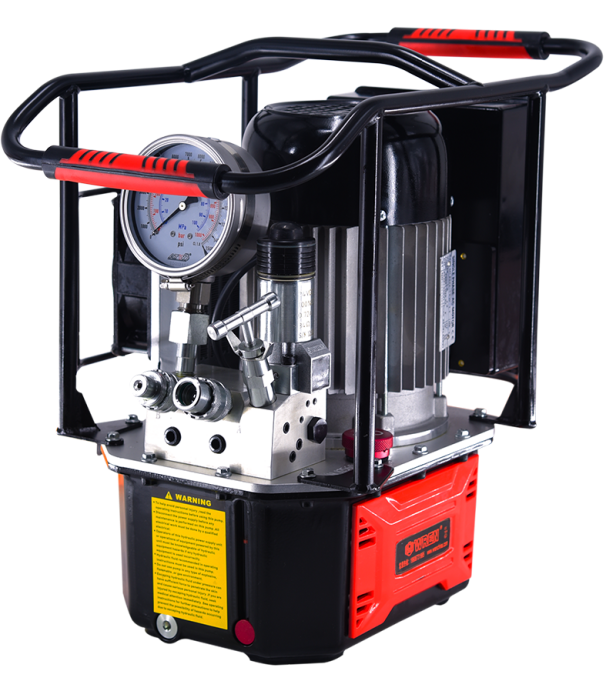

LP3 Series: Working Pressure: 55Mpa Drive Mode: Electric Voltage: 220V/50Hz Power: 1.1KW Oil Tank Capacity: 5.5L Flow: 7-1.6-0.8L/min Cooler: Yes Oil Output: 4X1/4”NPT or 8X1/4”NPT |
Product introduction

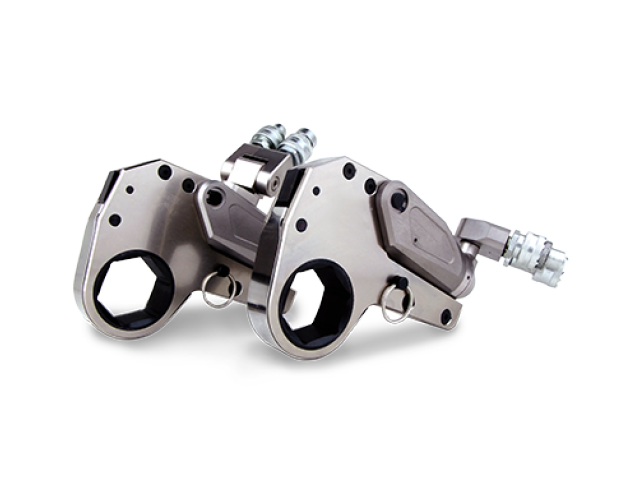

XLCT series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench acts directly on the nut, and its volume is thin and light, which is very suitable for working in a small space. The XLCT series hollow wrench can adapt to different working conditions by replacing the working head and assembling the reducer sleeve. It covers all bolts from S19 to S175.
XLCT series is a professional-grade hollow hydraulic torque wrench. Compared with the drive type hydraulic torque wrench, the hollow hydraulic torque wrench acts directly on the nut, and its volume is thin and light, which is very suitable for working in a small space. The XLCT series hollow wrench can adapt to different working conditions by replacing the working head and assembling the reducer sleeve. It covers all bolts from S19 to S175.
The IBT series uses aluminum-titanium alloy aviation materials. The hydraulic torque wrench is light in weight and high in strength. It has 10 standard models ranging from 112N.m to 72000N.m. It is applicable to many specifications and covers a wide range of bolts.
