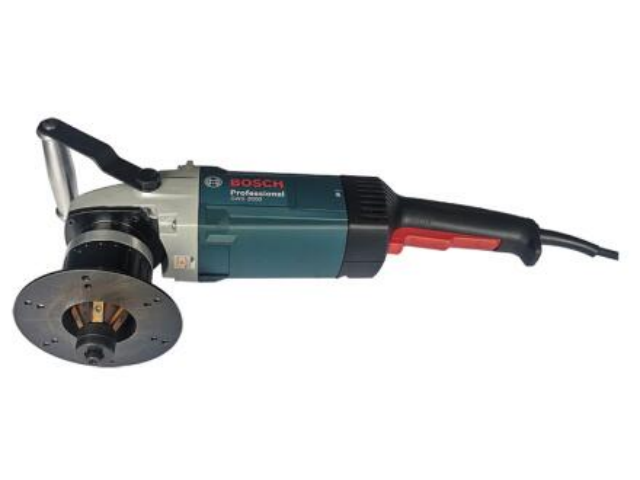

portable plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. Adopts milling process, handy feeding, small volume and light weight, carry easily, simple operation, a portable plate Beveling tool。Using it can significantly improve the work efficiency and reduce the labor intensity of user.
|
Model |
Electric |
Power |
Single depth |
Max land width |
Bevel angle |
Efficient |
Weight |
|
SKF-15 |
380V 50HZ 3P |
1.1KW |
3mm |
15mm |
30°~60° |
1-3m/min |
18KG |
|
K15 |
220V 50HZ 1P |
2.0KW |
3mm |
15mm |
30°，37°,45° |
1-3m/min |
8.5kg |

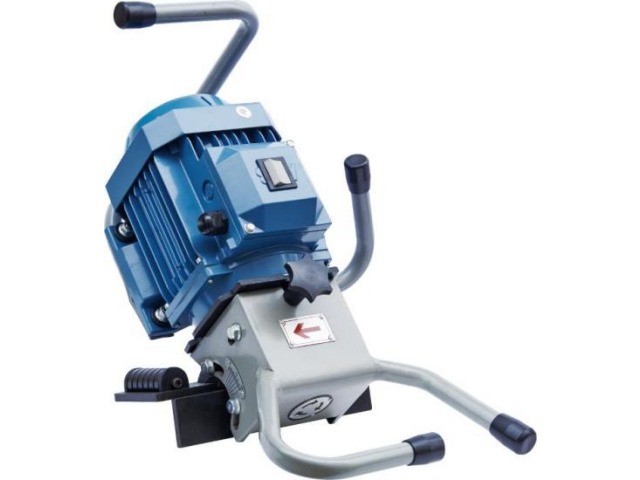

SKF Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling.This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.
This series of products is based on the milling principle of German ZL machining centers, designed for milling the required bevels on steel plate edges. It is suitable for pre-weld beveling or milling processes requiring high surface finish quality on the bevel face.
When processing large plates, the plate remains stationary while the machine automatically walks along its edge for processing. For smaller plates, the machine can be fixed, and the plate is automatically fed through the machine to complete the beveling process. The product is widely used in shipbuilding, metallurgy, steel structure, petrochemical industry, pressure vessel manufacturing, mechanical processing plants, mining equipment plants, power generation, heavy industry, and aerospace welding fields. It processes materials including common structural steel, cast iron, hard plastics, stainless steel, non-ferrous metals, etc.
portable plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. Adopts milling process, handy feeding, small volume and light weight,
