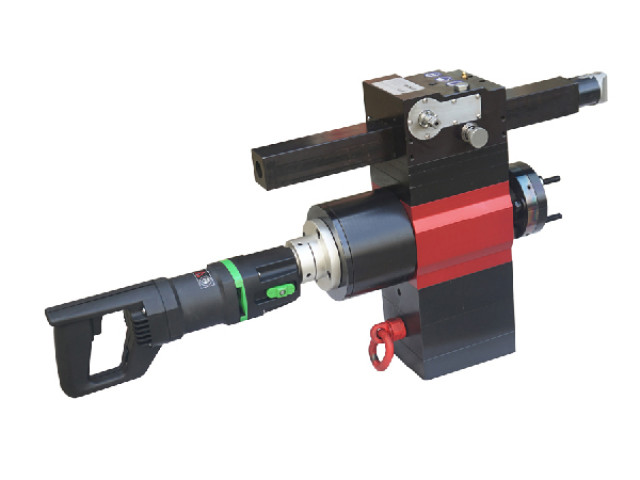

Portable Lathe Machine

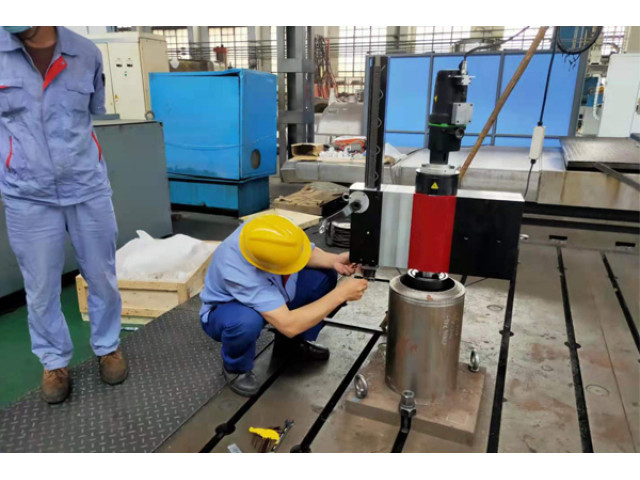

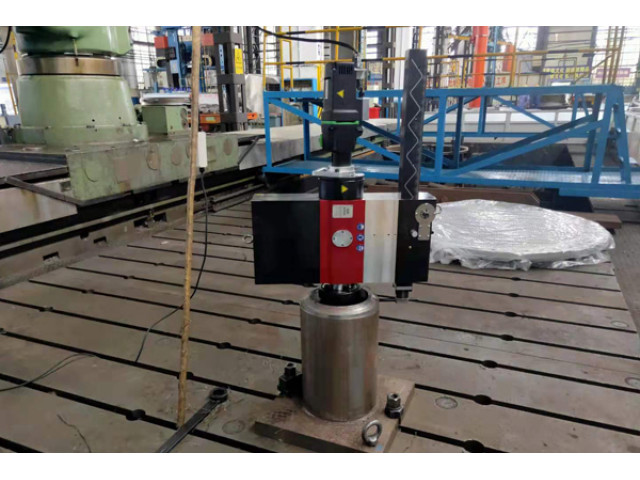

It is suitable for repairing damaged outer surfaces of shaft ends under on-site working conditions, and can also be used for machining shaped grooves and stepped grooves on shafts. This method is particularly applicable to motor shafts, drive shafts, and turbine shafts in large-scale equipment.

OVERVIEW

It is suitable for repairing damaged outer surfaces of shaft ends under on-site working conditions, and can also be used for machining shaped grooves and stepped grooves on shafts. This method is particularly applicable to motor shafts, drive shafts, and turbine shafts in large-scale equipment.

FEATURES

  • Step less speed regulation
  • Boring bar using high-quality alloy structural steel
  • Modular design, easy to operate, install and remove

SPECIFICATION

Model

Working range(mm)

Axialfeed rate(mm/r)

Axial storke(mm)

Rotation Rpm

JL30

50-250

0-0.6

370

0-65

JL50

200-450

0-0.6

500

0-65
