Pipe threading machine

This machine utilizes a cutting tool (tap) to rotate or move along pipes, removing material to create threads. For applications demanding high-precision thread processing, the pipe threading machine ensures standardized and accurate threads.

OVERVIEW

This machine utilizes a cutting tool (tap) to rotate or move along pipes, removing material to create threads. For applications demanding high-precision thread processing, the pipe threading machine ensures standardized and accurate threads. It is suitable for threading water pipes, electrical conduits, gas pipes, and more, making it an optimal choice for mechanical, electrical, and plumbing operations.

FEATURES

  • Threading, cutting and chamfering
  • Cold threading, don't change the material of pipe
  • Threadingof high precision without burr

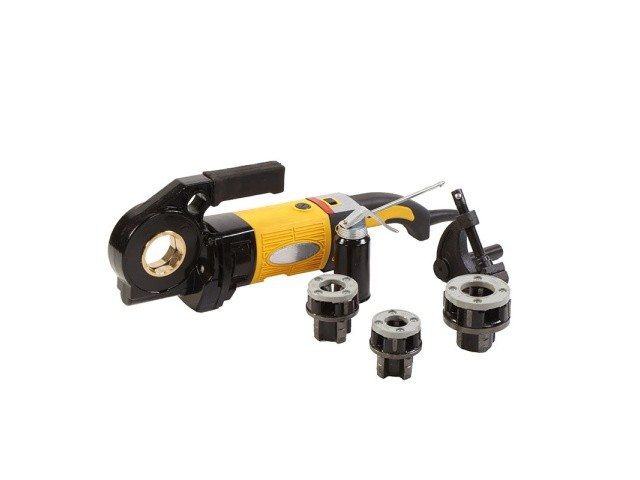

  • Portable and professional model optional

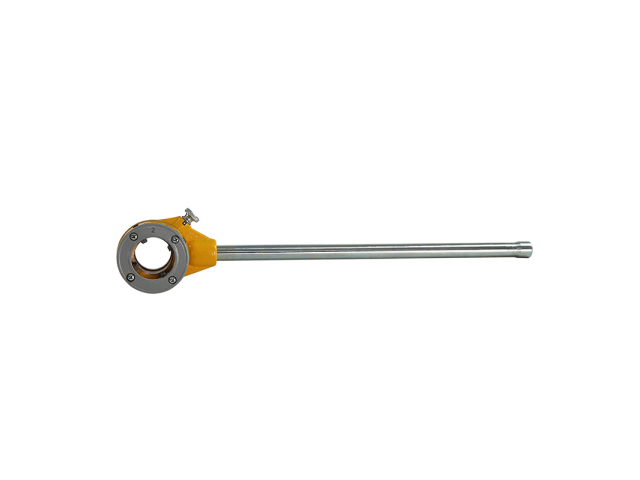

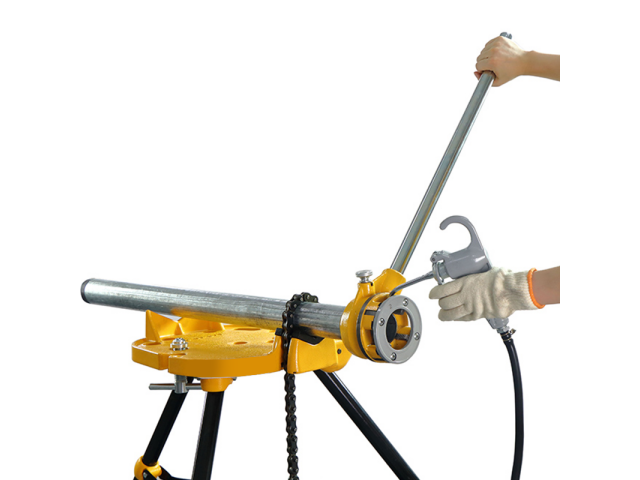

  • Manualand electric drive optional

SPECIFICATION

Model

Wprking range

Screw threads



Driven mode

Rotarion(rpm)

Power(W)

Weight(KG)

12R

1/2’’ - 2’’

NPT/BSPT

Manual

-

-

3

ZDS25

1/4’’ - 2’’

NPT/BSPT

Lithium battery

34

800

7

SQ30-2C

1/2’’ - 2’’

NPT/BSPT

220V/50Hz

30/55

1700

8

SQ30A

1/2’’ - 1 1/4’’

NPT/BSPT

220V/50Hz

25

1700

6

SQ50A

1/2’’ - 2’’

NPT/BSPT

220V/50Hz

110V/60Hz

21/30

1000

12

SQ80A

1/2’’ - 3’’

NPT/BSPT

220V/50Hz&380V/50Hz

17/34

1100

15

SQ100A

1/2’’ - 4’’

NPT/BSPT

220V/50Hz&380V/50Hz

14/31

1300

22

ZK25

1/2’’ - 1’’

NPT/BSPT

110V/50Hz

220V/60Hz

54

850

25

ZK50A

1/4’’ - 2’’

NPT/BSPT

110V/50Hz

220V/60Hz

39

1500

94

SQ50D

1/8’’ - 2’’

NPT/BSPT

110V/50Hz

220V/60Hz

38/57 optional

1500

93

SQ100F

1/4’’ - 4’’

NPT/BSPT

110V/60Hz

220V/50Hz

11/20/36

1500

165

Different industry demand different model, please declare before order
