PGM is a high-efficiency CNC pipe end beveling machine developed for batch pre-fabrication processing of small-diameter pipes. It is compatible with various metal and plastic materials. Powered by powerful variable frequency motor and controlled via CNC system, it features hydraulic dual-clamping, auto-centering, and automatic tool advance/retraction. With fast processing speed, high precision, excellent bevel quality, and user-friendly operation, can be equipped with multiple fixtures.
|
Model |
Working Range |
Thickness |
Mix.length |
Rotation |
Power |
Tool stroke |
|
OD mm |
mm |
mm |
rpm |
kw |
mm |
|
|
OCF-80 |
35-114 |
4-40 |
250 |
200 |
5.5 |
150 |
|
OCF-325 |
50-325 |
4-100 |
320 |
150 |
7.5 |
200 |
|
OCF-457 |
168-457 |
4-100 |
600 |
110 |
7.5 |
200 |
|
OCF-610 |
325-610 |
4-100 |
600 |
55 |
7.5 |
200 |
|
OCF-820 |
457-820 |
4-100 |
700 |
45 |
30 |
300 |
|
OCF-1220 |
508-1220 |
4-100 |
700 |
40 |
45 |
300 |
Power requirement：380V,50-60Hz,3P
Up/down travel：200mm
Angle deviation：±0.5
Vertical deviation：±0.5mm/300mm
please declare Beveling shape, angle and pipe material in advance

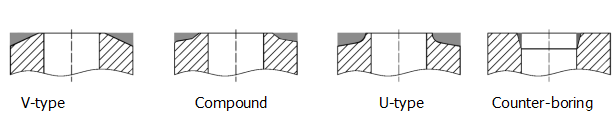

OCF was developed pipe end beveling High speed，It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,etc.
OCF was developed pipe end beveling High speed，It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,etc.
High speed pipe beveling machine
Suitable for large quantities of pipe beveling process
4 tool level design, used for more processing conditions
