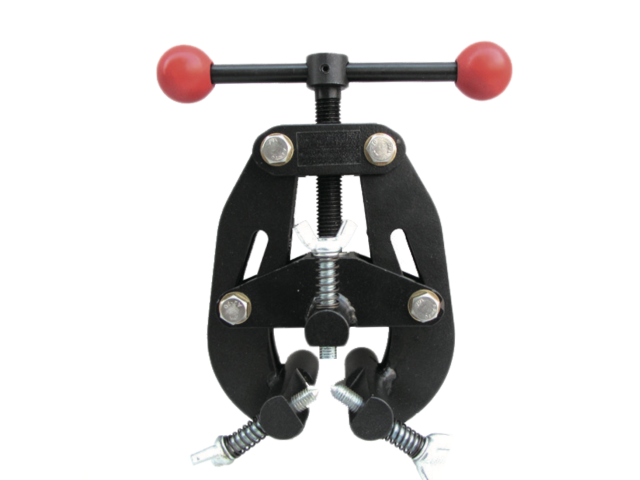

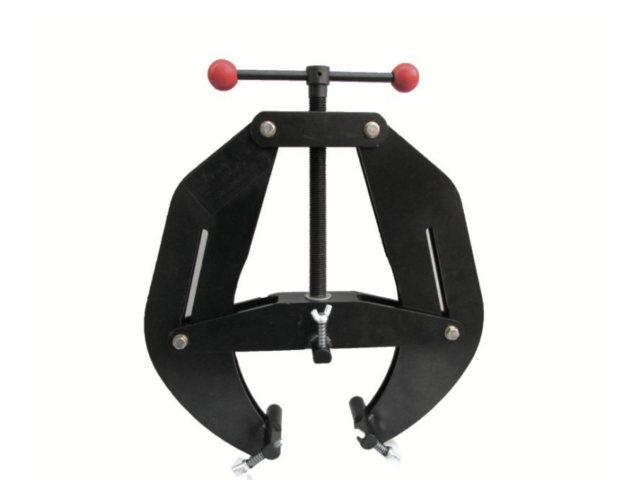

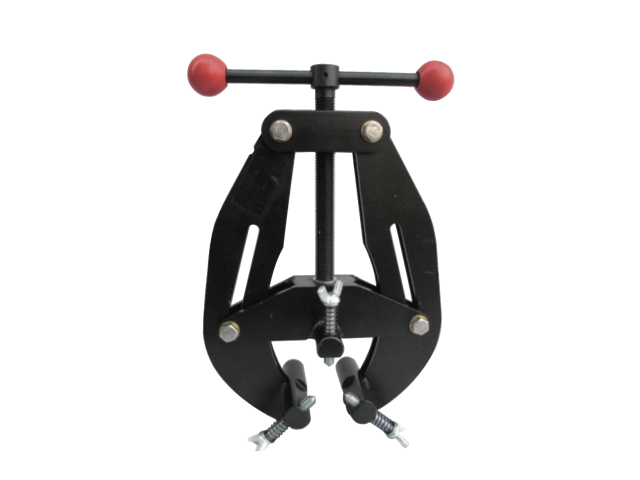

This product is a specialized tool designed for pipe welding, assisting welders in tack welding preparation. It enables precise alignment for pipe-to-pipe, pipe-to-elbow, and pipe-to-flange connections by centering components along their axis. Ensures roundness, gap consistency, and coaxiality meet welding requirements while preventing misalignment or uneven gaps that compromise weld quality.
|
Model |
Clamping Range |
|
|
mm |
inch |
|
|
RG063 |
23-63 |
1”-2.5” |
|
RG150 |
50-150 |
2”-6” |
|
RG300 |
112-300 |
4.5”-12” |
|
RG350 |
150-350 |
6”-13.5” |
|
RG400 |
200-400 |
8”-15.5” |
The Large Multiples Tube Bender is used for bending metal pipes. Its core characteristic is the ability to create bends with a large bending radius, meeting the stringent requirements of specific projects regarding fluid resistance, pipe stress, and spatial layout. In precision industries such as semiconductors and nuclear power, to avoid turbulence or sediment accumulation at the bends, large multiples bends are essential to ensure smooth flow. It becomes a critical tool when a project prioritizes smooth fluid flow, long-term pipe reliability, and low energy consumption of the system.
Gold Bridge Clamps are manufactured out of forged steel to enable maximum strength and durability. This product is a specialized tool used for pipeline welding. It enables the rapid, precise, and secure alignment, clamping, and fixing of pipe to pipe, pipe to elbow, or pipe to flange for welding.
This product is a mechanical pipe alignment device that utilizes high-strength adjusting bolts (jack bolts). By manually rotating these bolts, it generates powerful radial clamping force to restore pipe end roundness, align pipe sections, and secure the joint interface. Characterized by its simple structure, durability, reliability, and low cost, it achieves precise pipe end shaping, accurate positioning, and stable support. It provides the crucial foundation for obtaining high-quality circumferential weld seams, making it an essential tool for large-scale pipeline engineering projects.
