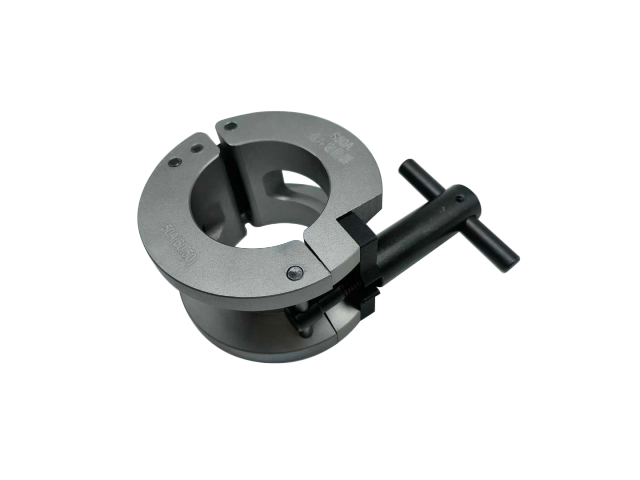

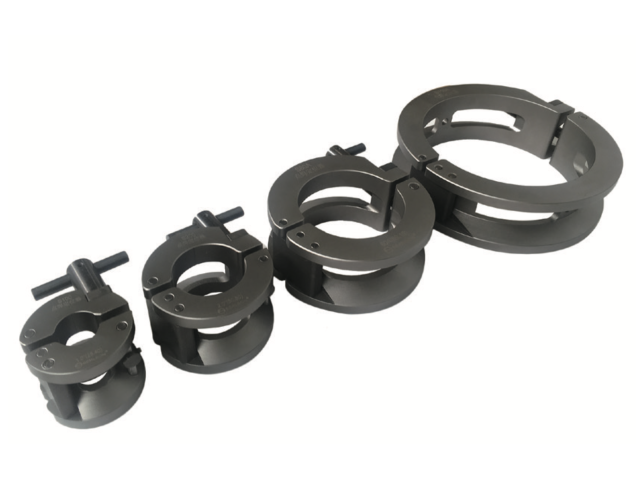

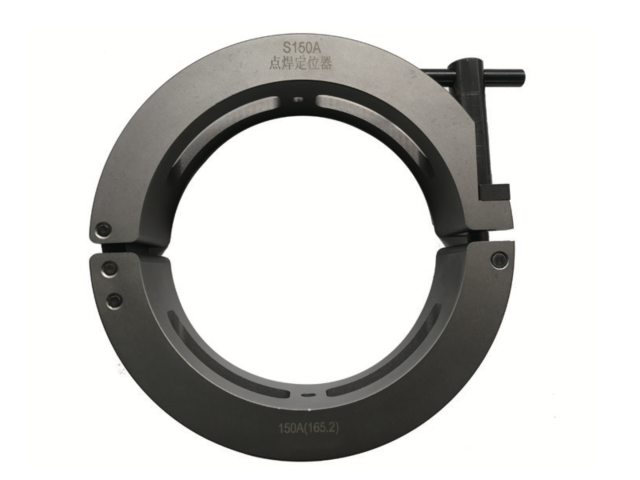

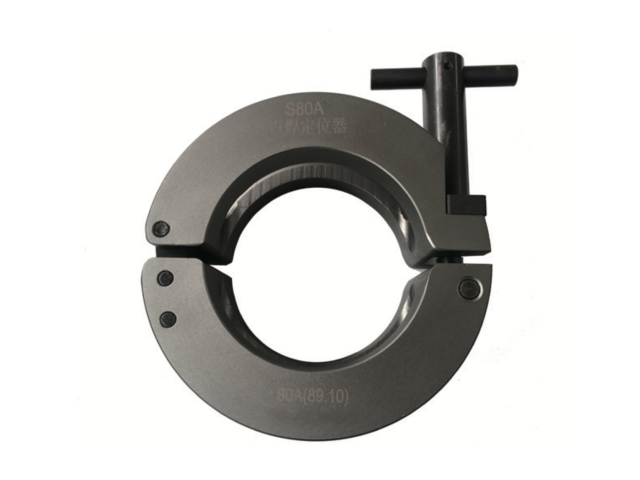

Tack Welding Alignment Tool

This product is a specialized tool designed for pipe welding. It assists welders in quickly completing tack welding preparation. It is suitable for precisely aligning and connecting pipe-to-pipe, pipe-to-elbow, and pipe-to-flange joints, ensuring coaxial alignment of the connected pieces. This guarantees roundness, gap consistency, and concentricity of the pipe ends meet welding requirements, preventing misalignment or uneven gaps that can compromise weld quality.

OVERVIEW

This product is a specialized tool designed for pipe welding. It assists welders in quickly completing tack welding preparation. It is suitable for precisely aligning and connecting pipe-to-pipe, pipe-to-elbow, and pipe-to-flange joints, ensuring coaxial alignment of the connected pieces. This guarantees roundness, gap consistency, and concentricity of the pipe ends meet welding requirements, preventing misalignment or uneven gaps that can compromise weld quality.

FEATURES

  • Simple to use for fast setup
  • Small and lightweight for use in confined spaces.
  • Lightweight and easy to carry to the job site.

SPECIFICATION

Model

Clamping OD

Opening Width

Overall Width

Outer Diameter

mm

inch

mm

mm

mm

TWA1

25.4

1.0”

22

60

65

TWA1.5

38.1

1.5”

22

60

78

TWA2.0

50.8

2.0”

22

60

91

TWA2.5

63.5

2.5”

22

60

104

TWA3.0

76.2

3.0”

22

60

126

TWA3.5

88.9

3.5”

22

60

139

TWA4.0

101.6

4.0”

22

60

152

TWA4.5

114.3

4.5”

22

60

164

TWA5.0

127

5.0”

22

60

177

*Customized solutions for special sizes are available; please specify your requirements when ordering.
