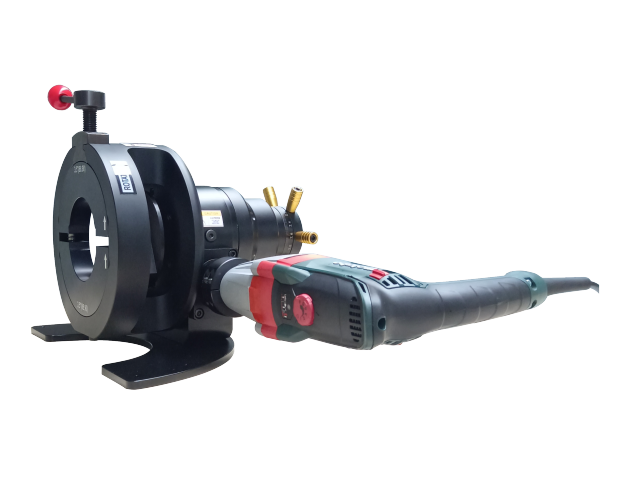

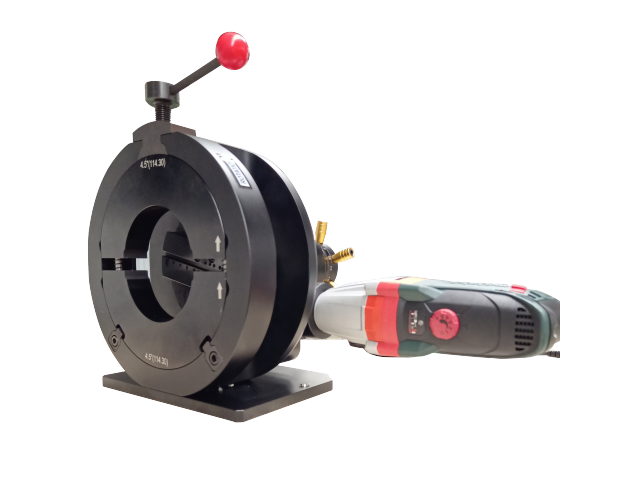

ACM pipe facing machine was designed for pipe end facing and beveling with small/big diameter and thin-wall thickness. OD mounted, equipped with special collect and tool, easy installation, fast and efficient processing. It is small in size, light in weight and easy to carry. It is suitable for facing and beveling of pipe end in electronics, pharmaceutical, food, beverage, solar energy, semiconductor and chemical industry.
|
Model |
Range |
Tool stroke |
Working thickness |
No-load rotating |
Voltage |
Power |
Net Weight |
|
ACM-1.5 |
Φ3-38.1mm |
5mm |
0.5-5mm |
300rpm |
220v |
1.3kw |
6.0kg |
|
ACM-2.0 |
Φ6-50.8mm |
5mm |
0.5-5mm |
300rpm |
220v |
1.3kw |
6.1kg |
|
ACM-2.5 |
Φ9-63.5mm |
5mm |
0.5-5mm |
300rpm |
220v |
1.3kw |
6.3kg |
|
ACM-3.0 |
Φ12.7-76.2mm |
5mm |
0.5-5mm |
300rpm |
220v |
1.3kw |
16.6kg |
|
ACM-4.5 |
Φ12.7-114.3mm |
5mm |
0.5-5mm |
300rpm |
220v |
1.3kw |
18.4kg |
|
ACM-6.0 |
Φ50.8-150mm |
5mm |
0.5-5mm |
300rpm |
220v |
1.3kw |
23.1kg |
* Standard with four diameter clamping block, more specifications please inquire

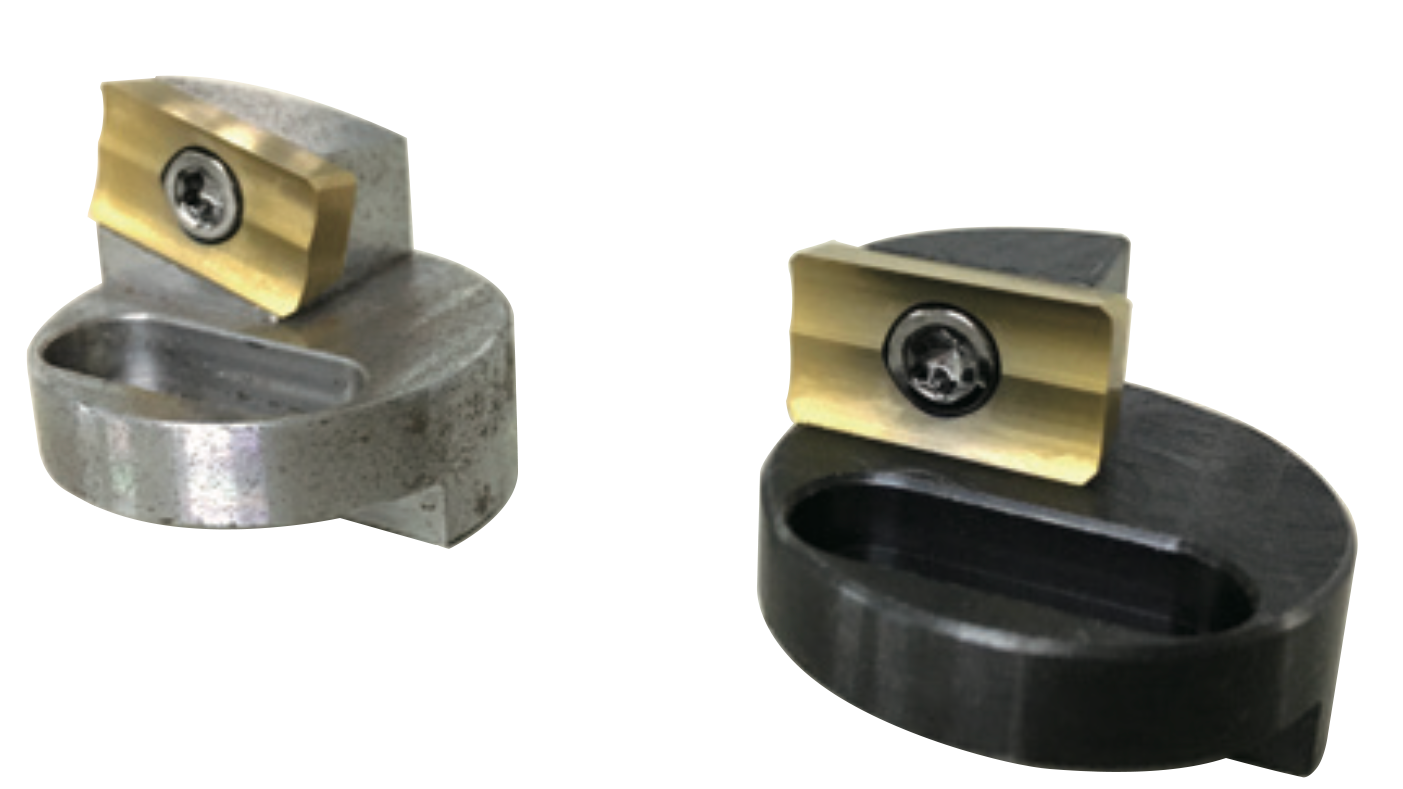

2pcs facing tool
Material：Cermet or Carbide
Beveling tool optional
Custom Beveled Shims
Range for pipe OD 3mm-110mm
PFM pipe facing machine was designed for pipe end facing and beveling with small diameter and thin-wall thickness. OD mounted, equipped with special collect and tool, easy installation, fast and efficient processing. It is small in size, light in weight and easy to carry. It is suitable for facing and beveling of pipe end in electronics, pharmaceutical, food, beverage, solar energy, semiconductor and chemical industry.
ACM pipe facing machine was designed for pipe end facing and beveling with small/big diameter and thin-wall thickness. OD mounted, equipped with special collect and tool, easy installation, fast and efficient processing. It is small in size, light in weight and easy to carry. It is suitable for facing and beveling of pipe end in electronics, pharmaceutical, food, beverage, solar energy, semiconductor and chemical industry.
