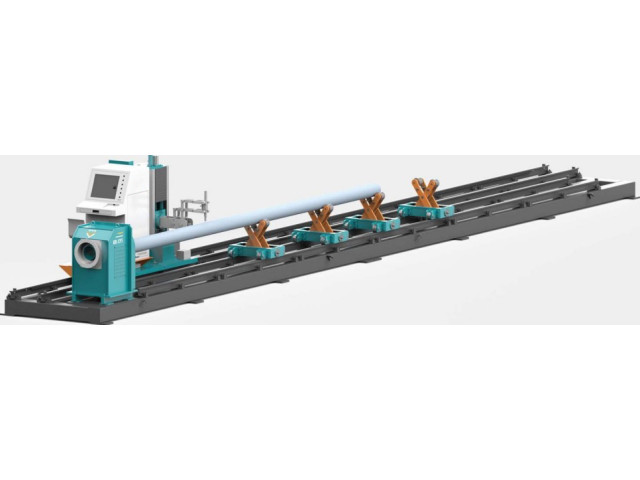

3/5 Axis Laser Pipe Saddle Cutting Machine

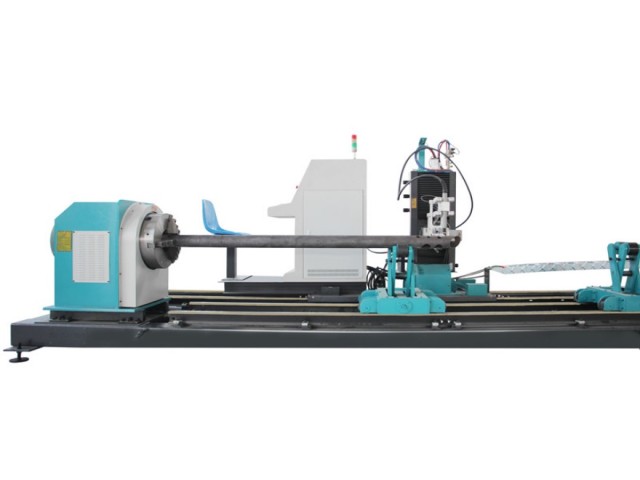

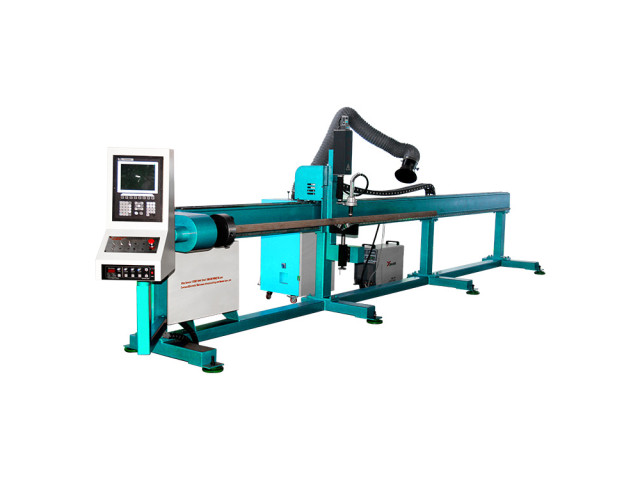

3/5 Axis Laser CNC Pipe Saddle Cutting Machine is special CNC equipment which is used for cutting metal pipe automatically. CNC tube cutting machine can realize auto program and auto CNC nesting work for any complicated joint type of intertube, pipe, etc.

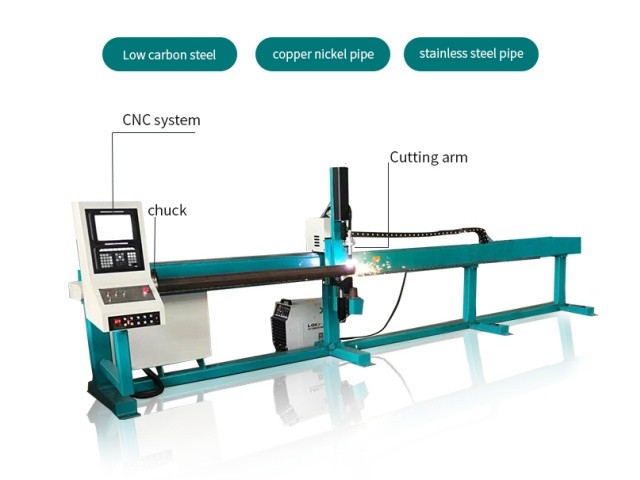

Product Description

Features

Aeronautical aluminum material resistant to high temperature and pressure;
The steel The steel plate tailor-welded box structure design is adopted, and the structure is compact to improve the overall rigidity and strength. 2 chucks, can cut both pipe and square tube
The top surface and two side surfaces are precisely processed by a CNC grinder using 24KG grade 550 ground rails to ensure the level and parallelism of the moving torch(KR-XY5).
It uses Pro-face's GP-2301HL handheld graphical operation interface. It has world-class security. Protection function: 3-position enable switch, 3-contact emergency stop switch, alarm function(KR-XY5).

Technical parameters

Model		KR-XY3	KR-XY5
Material Size	Round pipe Diameter	50-300mm	60-600mm
Material Size	Effective cutting length	6000mm	12000mm
Cutting Method	Cutting method	Plasma	Plasma/Flame
	Plasma power	100A	Hypertherm Maxpro200A plasma power
	Plasma thickness	1-10mm	Piereing thickness 1-25mm Beveling thickness 6-17mm
	Flame cutting thickness	-	Vertical cutting thickness 6-60mm Beveling thickness 6-40mm
	Plasma bevel angle	0°	± 45°
	Flame Bevel angle	-	Hole cutting± 55°; End cutting ±60°
Control systerm and Software	Control system	Kasry control system	Kasry control system
	Computer	Taiwan Advantech Industrial Computer	Taiwan Advantech Industrial Computer
	Software	KASRY Pipe Nest software	KASRY Pipe Nest software
Accuracy	Requires workpiece ellipticity	≤1%	≤1%
	Cutting Speed	10-2000mm/min	10-2000mm/min
	Moving Speed	10-6000mm/min	10-6000mm/min
	Cutting length accuracy	±1.5mm	±1.5mm
	Cutting precision execution standard	According to ISO9013-2002, IS08206-1991 and JB / T10045.4-1999JB
Chuck	Chuck	-	Manual 3-jaw linkage self-centering
Chuck	Manual Chuck tightening device	-	1set
Bracket	Bracket	-	4groups
Weight	Max load weight	300KG	5000KG
