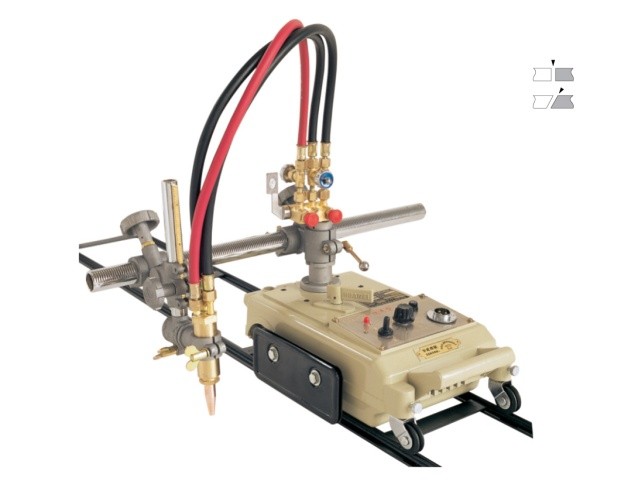

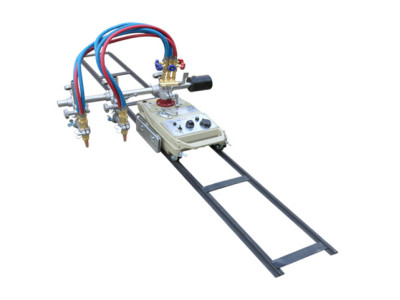

CG1-30 Straight Flame Cutting Machine

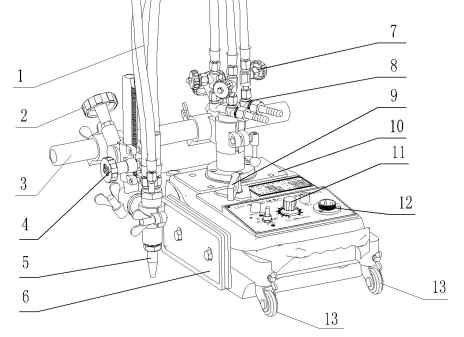

1. Gas delivery hose: There are three hoses in total, namely fuel gas, preheating oxygen and cutting oxygen

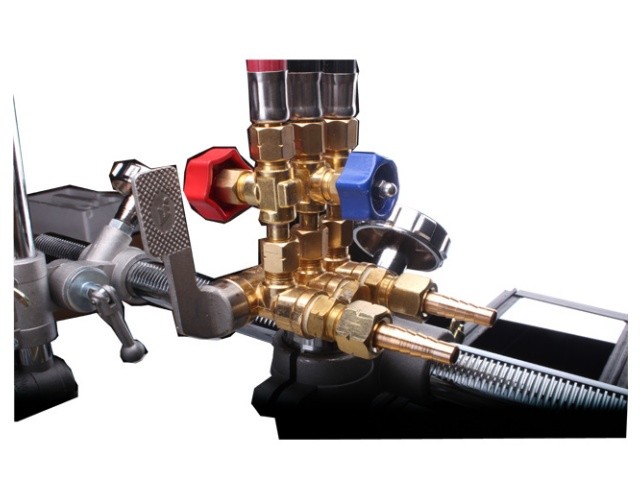

8. Gas distributor

9. Clutch handle: Align the tip of the handle with "STOP" to release; align it with "START" to close.

2. Horizontal hand wheel: adjust the horizontal position of the cutting torch

10. Host

3. Transverse rack

11. Speed ​​knob

4. Cutting torch vertical adjustment hand wheel

The speed increases from "0" to "10", and decreases in the opposite direction

5. Cutting mouth

12. Power socket

6. Heat insulation board: prevents the heat generated by cutting from diffusing into the machine

13. Universal wheel

7. Gas two-way valve: adjust the gas flow

1. Weight (main body)

：16kg

appendix

：7.8kg

2. Device size

：435×210×240mm

3. Speed ​​control

：Thyristor control

4.power supply

：comminicate 220V±10％    50HZ

5.Cutting speed

：50～750/mm/min

6.Cutting thickness

：5-100mm

7.Bevel angle

：0-45°

8.Cutting circle diameter

：ø200-ø2000mm

9.Cutting Nozzle

：G02(for acetylene), G03 (for propane)

10.Motor

：DC 110V 50HZ 30W Speed ​​4200r/min

1. Host

1 unit

2. Cutting torch gas circuit assembly

1 set

3.Mobile assembly

1 set (including left and right, up and down moving assembly and rack)

4. Cutting nozzle (select one according to user needs)

1.GO2：（Acetylene）

3

2.GO3：（Propane）

3

5.Power cord

1

6.Instructions, Certificate of Conformity1 each

7.Inlet connector/pressure cap

2 pairs

8.Ball screw M4

2

Standard accessories

1.Circle cutting assembly

1 set

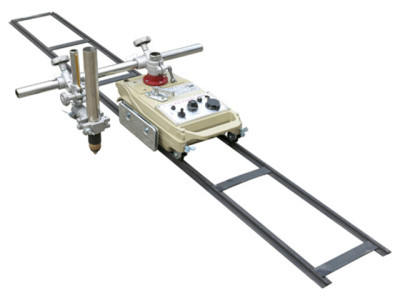

2.Guide rails

(Select any one according to customer needs)

1) 2 convex grooves (1.8 meters each)

2) 1 groove guide rail (1.8 meters)

Optional accessories

2 grooved rails (1.2 meters)
